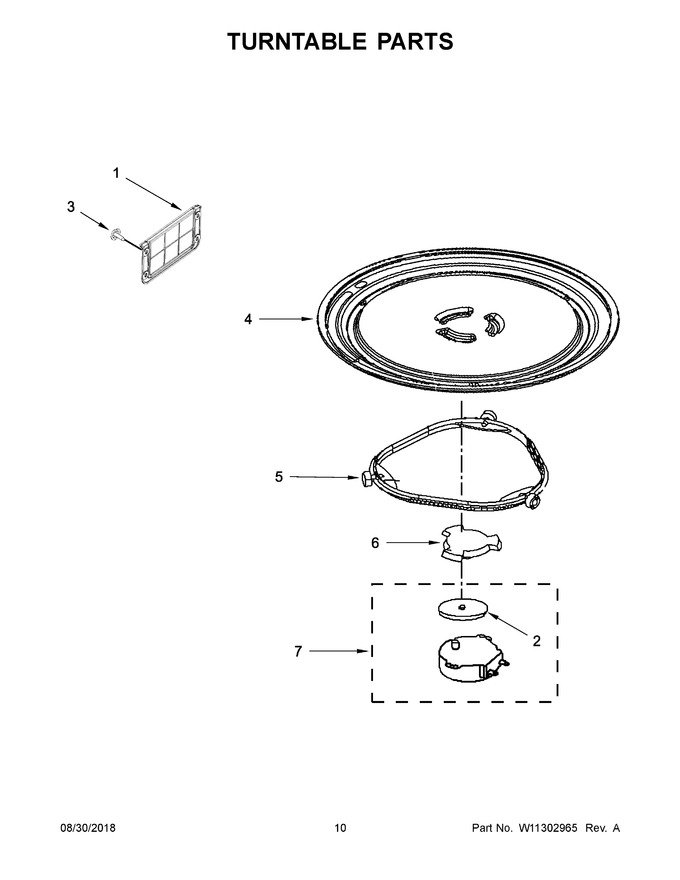

06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10313272 | Cover, Waveguide |
|
Immediately | $ 30.87 | ||||
| 2 | 8184109 | Seal, Waterproof |
|
$ 6.26 | |||||
| 3 | W11319886 | Rivets (Replaces: W10138801) |
|
$ 19.27 | |||||
| 4 | W11367904 | Turntable (Replaces: W11255440) |
|
Immediately | $ 65.60 | ||||
| 5 | W11252182 | Ring, Turntable (with Rollers) (Replaces: W11193600) |
|
Immediately | $ 35.60 | ||||
| 6 | W11245707 | Driver, Turntable (Replaces: W11193599) |
|
Immediately | $ 75.10 | ||||
| 7 | W10642989 | Motor, Turntable |
|
Immediately | $ 171.39 |
