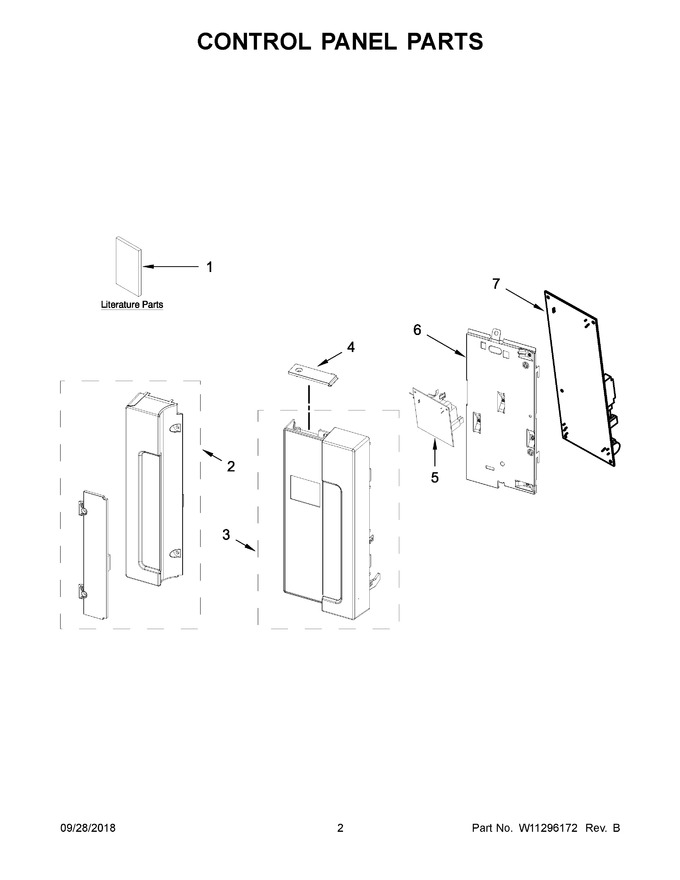

02 - Control Panel Parts
03 - Door Parts
04 - Interior And Ventilation Parts
05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11199606 | Installation Instructions |
|
- | |||||
| 2 | W11219784 | Control Panel, Left (white) |
|
$ 317.39 | |||||
| 3 | W11206154 | Control Panel, Right (white) |
|
$ 131.96 | |||||
| 4 | W11109987 | Cover, Top (white) |
|
$ 54.99 | |||||
| 5 | W11244085 | Pcba, User Interface (Replaces: W11127047) |
|
Immediately | $ 210.06 | ||||
| 6 | W11083284 | Backer, Control |
|
Immediately | $ 70.37 | ||||
| 7 | W11129648 | Pcba, Appliance Control Unit |
|
Immediately | $ 134.86 | ||||
| 1A | W11236922 | Use And Care Guide |
|
- | |||||
| 1B | W11224812 | Tech Sheet |
|
- | |||||
| 2A | W11220414 | Control Panel, Left (black) |
|
Immediately | $ 306.00 | ||||
| 2B | W11220420 | Control Panel, Left (stainless) |
|
Immediately | $ 317.93 | ||||
| 3A | W11206155 | Control Panel, Right (black) |
|
$ 123.71 | |||||
| 3B | W11206156 | Control Panel, Right (stainless) |
|
$ 151.05 | |||||
| 4A | W11083285 | Cover, Top (black) |
|
$ 59.68 |
