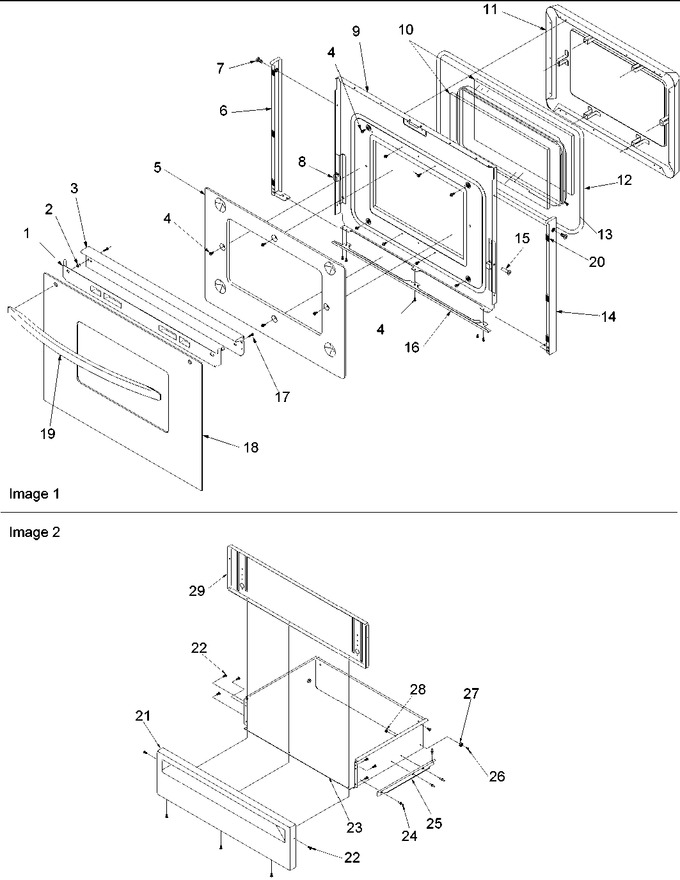

SELECT A DIAGRAM

01 - Cabinet


02 - Cavity


03 - Main Top And Backguard


04 - Oven Door And Storage Drawer


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31833201		Assy, Glass Heat Shield		Appelez-nous	-
2	309461B		Bushing, Handle (blk)		Appelez-nous	-
3	31782102B		Trim, Door Top		Appelez-nous	-
4	31750706		Screw, No.8 X .375 Wafer Hd(blk)		Appelez-nous	-
5	Y0309068		Shield, Heat		Appelez-nous	-
6	309523B		End Cap, Door (lt-blk)		Appelez-nous	-
7	W11245710		Screw, No.8-18 X 3/8 P Trs Hd Lp   (Replaces: 31750410)			Immediately	$ 12.65
8	Y0309627		Bumper, Rubber		Appelez-nous	-
9	317023CG		Backer, Oven Door		Appelez-nous	-
10	Y0317019		Glass, Door		Appelez-nous	-
11	317021CG		Pad, Oven Door		Appelez-nous	-
12	31715902		Gasket, Oven Door (67``)				$ 13.97
13	Y0317020		Frame, Window Pack		Appelez-nous	-
14	309522B		End Cap, Door (rt-blk)		Appelez-nous	-
15	Y0302648		Rivet, Pop		Appelez-nous	-
16	309460B		Support, Glass (blk)		Appelez-nous	-
17	31750525		Screw, 10-32 X 1.250`` Pan Hd		Appelez-nous	-
18	316238B		Glass, Oven Door (blk)		Appelez-nous	-
19	31689501B		Handle, Oven Door (blk)		Appelez-nous	-
20	0043184		Tape, Foam		Appelez-nous	-
21	309176B		Panel, Drawer (blk)		Appelez-nous	-
22	W11245710		Screw, No.8-18 X 3/8 P Trs Hd Lp   (Replaces: 31750410)			Immediately	$ 12.65
23	31967403W		Wrapper, Storage Door (wht)		Appelez-nous	-
24	Y0097822		Rivet, Pop		Appelez-nous	-
25	31733301		Track, Storage Drawer		Appelez-nous	-
26	31750717		Bolt, Shoulder 10-32		Appelez-nous	-
27	31733401		Roller, Drawer				$ 5.75
28	31750130		Nut, Lock (center) No.10-32 (zn)		Appelez-nous	-
29	31927401B		Liner, Drawer Panel (blk)		Appelez-nous	-
NI	31975501		Insulation, Door Pad-long		Appelez-nous	-
NI	Y0309434		Label, Cleaning Caution Fr/eng		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
