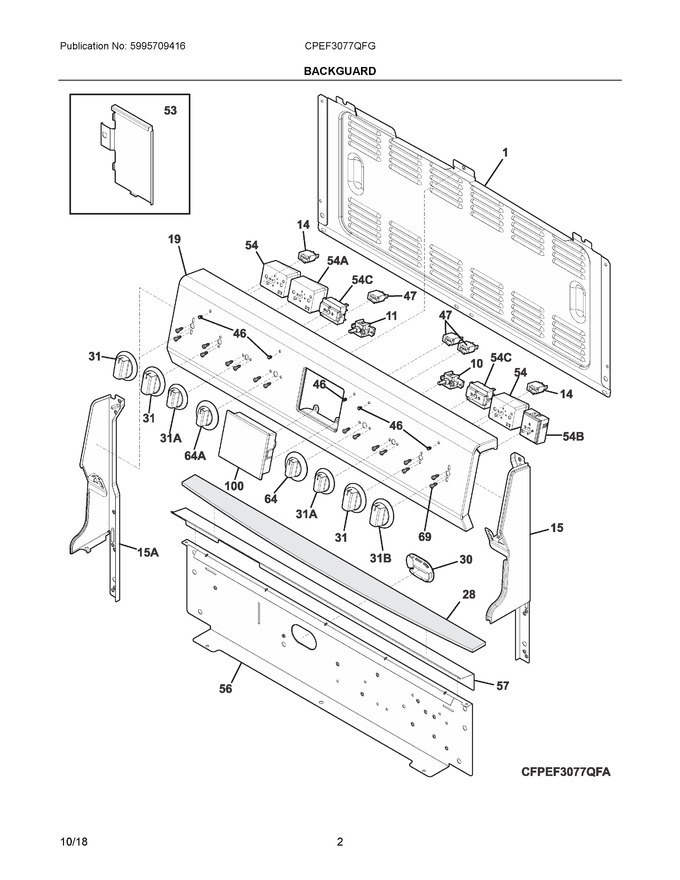

02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316281802		Shield, Backguard, Rear Wall   (Replaces: 316281801)				$ 57.64
10	5304494433		Potentiometer, Oven Temp				$ 67.28
11	5304493649		Potentiometer, Oven Mode			Immediately	$ 71.59
14	316022500		Light/lamp, Indicator, Black, 125 V			Immediately	$ 53.57
15	5304493644		Cap, End, Black, Rh				$ 66.74
19	5304496879		Panel, Control, Stainless				$ 278.33
28	316528700		Insulation, Manifold Panel				$ 89.31
30	316577600		Plug, Button, Oval, Harness				$ 14.89
31	5304494413		Knob, Inf Sw Single				$ 112.24
46	316557300		Lens-light/lamp, Indicator, Clear			Immediately	$ 16.77
47	316022508		Light/lamp, Indicator, Blue, Oven				$ 27.30
53	316355000		Shield, Flue, Inner		Appelez-nous	-
54	316436000		Switch, Infinite, Small Element			Immediately	$ 80.34
56	316234045		Shield, Backguard, Black, Inner				$ 66.74
57	5304494437		Shield, Steam		Appelez-nous	-
64	5304494416		Knob, Pot Temp		Appelez-nous	-
69	5303288565		Screw, Truss Sqdr, 8-32 X 3/16, Switch Mtg				$ 3.12
100	808751525		Hmi, Asm   (Replaces: 5304505475)			Immediately	$ 323.78
15A	5304493646		Cap, End, Black, Lh			Immediately	$ 66.74
31A	5304494415		Knob, On/off				$ 95.68
31B	5304494414		Knob, Inf Sw Dual		Appelez-nous	-
54A	316436001		Switch, Infinite, Large Element			Immediately	$ 51.68
54B	316238201		Switch, Infinite Radian, Dual			Immediately	$ 89.00
54C	5304537897		Switch-infinite, Warmer Drw/zone   (Replaces: 316471601)			Immediately	$ 36.11
64A	5304494417		Knob, Pot Mode				$ 95.68
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	5304505678		Harness, Backguard				$ 60.25
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	5308014215		Screw, 6-20 X 0.312				$ 2.28
