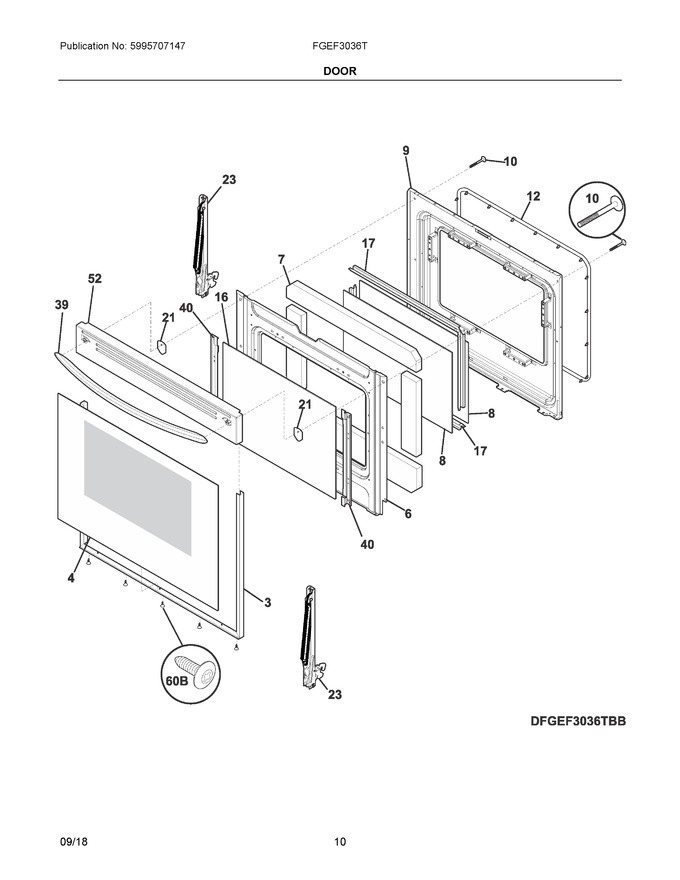

05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303935377		Trim Kit-door, 3 Sided, Black, W/tape			Immediately	$ 58.12
4	316350403		Glass, Door, Black, Outer				$ 188.78
6	316406328		Shield-wool   (Replaces: 316406312)				$ 87.21
7	316405600		Insulation, Oven Door				$ 76.55
8	5304503232		Glass, Oven Door, Heat Barrier, Inner, Hrc2   (Replaces: 316117502)				$ 116.95
9	5304529999		Liner, Oven Door   (Replaces: 316423707)				$ 147.12
10	316433300		Screw, 10-14 X 2.125", Handle Mtg.			Immediately	$ 27.50
12	316405000		Seal, Oven Door			Immediately	$ 179.17
16	316552801		Glass, Door, Airwash				$ 37.93
17	5304504811		Spacer, Glass			Immediately	$ 25.02
21	316533801		Plate, Distribution, Load			Immediately	$ 5.67
23	316575948		Hinge, Oven Door			Immediately	$ 47.69
39	316544500		Handle, Door, Black				$ 122.10
40	316552401		Bracket, Airwash Glass, (2)				$ 28.83
52	5304512114		Cap, Door, Black		Appelez-nous	-
60B	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	5303285179		Screw, Wafer Head, 8-32t X 0.500, Black, 44*				$ 13.46
NI	316483102		Label, Anti-tip				$ 3.56
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
