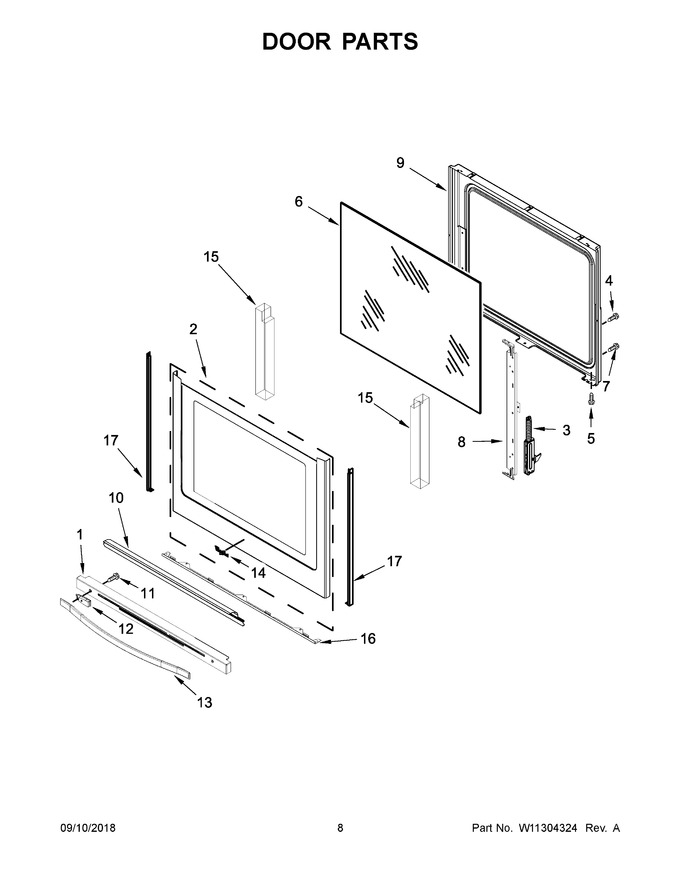

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10335331		Vent, Trim (white)   (Replaces: W10335331)			Immediately	$ 112.82
2	WPW10289141		Assembly, Outer Door (white Ice)   (Replaces: W10289141)				$ 312.26
3	WPW10440013		Hinge, Door (active)   (Replaces: W10440013)			Immediately	$ 57.42
4	WPW10031790		Screw   (Replaces: W10031790)			Immediately	$ 7.87
5	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 6.47
6	WPW10300487		Glass, Inner   (Replaces: W10300487)				$ 227.18
7	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 7.04
8	W11116956		Rail, Door   (Replaces: W10294851)				$ 114.64
9	WPW10297318		Liner, Door   (Replaces: W10297318)			Immediately	$ 284.15
10	W10294853		Bracket, Glass Liner			Immediately	$ 203.18
11	W11396735		Screw   (Replaces: W10426267)				$ 12.65
12	WPW10429492		Standoff, Handle (white)   (Replaces: W10429492)			Immediately	$ 19.78
13	WPW10618239		Handle, Door (stainless)   (Replaces: W10254687)			Immediately	$ 157.99
14	W11178521		Badge (white)   (Replaces: W10481434)			Immediately	$ 56.82
15	W11688565		Insulation, Door   (Replaces: W10772958)				$ 22.73
16	WPW10333990		Trim, Bottom (white)   (Replaces: W10333990)			Immediately	$ 46.71
17	W10334003		Trim, Side (white)			Immediately	$ 76.12
