SELECT A DIAGRAM

02 - Console And Control Parts


03 - Cam


04 - Door Parts


05 - Tub And Frame Parts


06 - Power Dry And Motor Parts


07 - Racks And Trays


08 - Motor Pump Parts

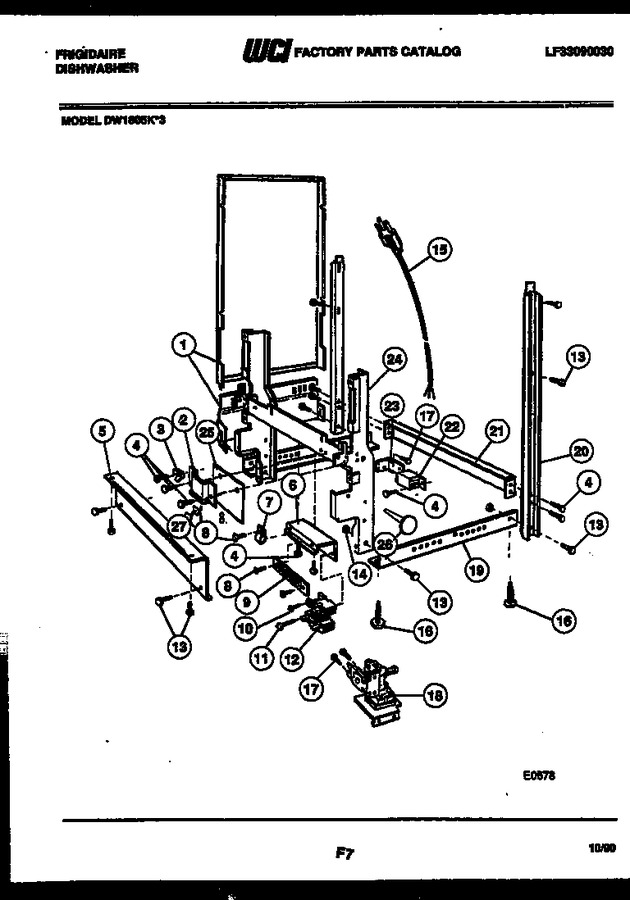

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3018135		Side Panel Kit-almond		Appelez-nous	-
1	3018190		Side Panel Kit-avoc		Appelez-nous	-
1	3018191		Side Panel Kit-wheat		Appelez-nous	-
1	3018134		Side Panel Kit-white		Appelez-nous	-
1	3018189		Side Panel Kit-coffee		Appelez-nous	-
2	3018136		Clamp-wire		Appelez-nous	-
3	3018047		Terminal Grounding		Appelez-nous	-
4	3018067		Screw		Appelez-nous	-
5	3018137		Toe Plate		Appelez-nous	-
6	3018138		Bracket-terminal Board		Appelez-nous	-
7	3018031		Clamp		Appelez-nous	-
8	3018065		Screw		Appelez-nous	-
9	3018139		Terminal Block Assy		Appelez-nous	-
10	3018140		Screw		Appelez-nous	-
11	3018141		Screw		Appelez-nous	-
12	5303014653		Relay - Motor		Appelez-nous	-
13	5303013944		Screw		Appelez-nous	-
14	3018143		Nut		Appelez-nous	-
15	3018144		Power Cord		Appelez-nous	-
16	3018145		Leveler		Appelez-nous	-
17	3018146		Screw		Appelez-nous	-
18	5300809241		Valve-water Inlet		Appelez-nous	-
19	3018148		Side Base Angle Kit		Appelez-nous	-
20	3018149		Support Channel		Appelez-nous	-
21	3018150		Brace-rear		Appelez-nous	-
22	3018151		Cover-junction Box		Appelez-nous	-
23	3018152		Bracket-junction Box		Appelez-nous	-
24	3018153		Hinge-weld Assy		Appelez-nous	-
25	3202614		Shield-wire		Appelez-nous	-
26	5300809711		Retainer-insulation		Appelez-nous	-
27	3202618		Tie - Wire		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
