02 - Console And Control Parts


03 - Cam


04 - Door Parts


05 - Tub And Frame Parts


06 - Motor Pump Parts


07 - Power Dry And Motor Parts


08 - Racks And Trays

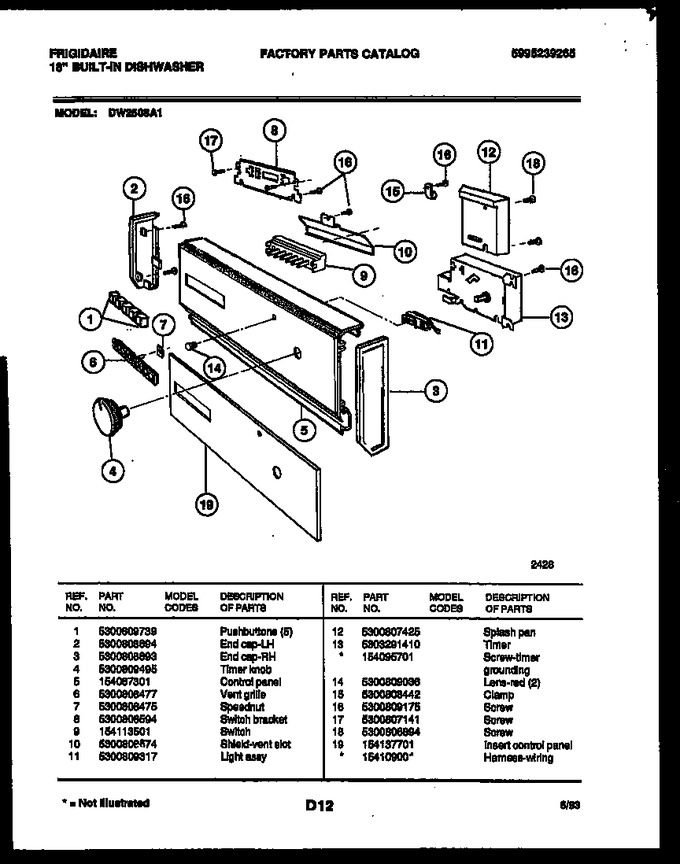

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300809739		Pushbuttons (5)		Appelez-nous	-
2	5300808694		End Cap-lh		Appelez-nous	-
3	5300808693		End Cap-rh		Appelez-nous	-
4	5300809495		Timer Knob				$ 80.48
5	154067301		Control Panel		Appelez-nous	-
6	5300808477		Vent Grille		Appelez-nous	-
8	5300806594		Switch Bracket		Appelez-nous	-
9	154113501		Switch		Appelez-nous	-
10	5300808574		Shield-vent Slot		Appelez-nous	-
11	5300809317		Light Assy		Appelez-nous	-
12	5300807425		Splash Pan		Appelez-nous	-
13	5303291410		Timer				$ 237.56
14	5300809036		Lens-red (2)				$ 20.90
15	240396801		Clamp   (Replaces: 5300808442)				$ 19.13
16	5300809175		Screw 8b X 7/16``		Appelez-nous	-
17	5300807141		Screw		Appelez-nous	-
18	5300806894		Screw		Appelez-nous	-
19	154137701		Insert-control Panel		Appelez-nous	-
*77184	154109001		Harness-wiring		Appelez-nous	-
13A	154095701		Screw-timer Grounding (non-illustrated)				$ 10.34

    View Diagram in Separate Window       Print Part List
