01 - Cabinet


02 - Cavity


03 - Main Top And Backguard


04 - Oven Door And Storage Drawer

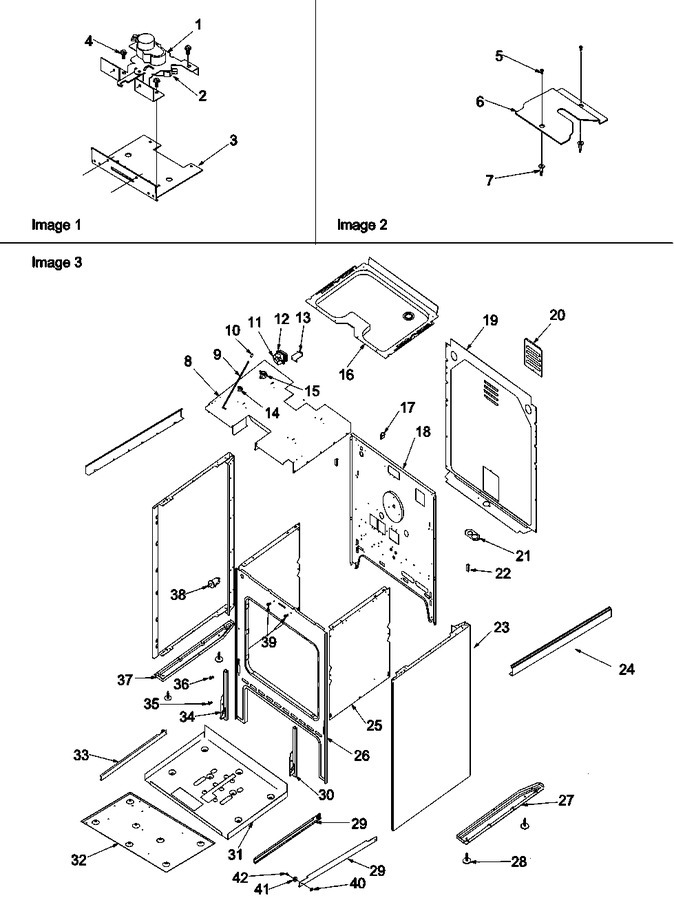

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0316541		Latch, Auto		Appelez-nous	-
2	0316767		Switch		Appelez-nous	-
3	31848301		Bracket, Latch Mounting		Appelez-nous	-
4	WP693995		Screw, No.8-18 X 3/8 P Hex Wsh T   (Replaces: 31750432)			Immediately	$ 6.47
5	31750412		Screw, No.8-18x5/8 P Rd Hd (blk)		Appelez-nous	-
6	Y0315560		Brkt, Range Anti-tip		Appelez-nous	-
7	Y0301555		Anchor, Plastic		Appelez-nous	-
8	31723601		Retainer, Top Insulation		Appelez-nous	-
9	Y0316701		Prop Rod, Main Top		Appelez-nous	-
10	Y0042002		Rod Tip, Rubber		Appelez-nous	-
11	Y0314375		Blade, Fan		Appelez-nous	-
12	Y0309884		Fan Assy, Cooling (w/blade)		Appelez-nous	-
13	0314183		Bracket, Z Fan		Appelez-nous	-
14	Y0308417		Control, Fan		Appelez-nous	-
15	Y0316699		Thermostat, High Limit		Appelez-nous	-
16	316050CG		Baffle, Drip (cg)		Appelez-nous	-
17	Y0041869		Timerman		Appelez-nous	-
18	31791201		Retainer, Rear		Appelez-nous	-
19	31757101		Cover, Rear		Appelez-nous	-
20	31757201		Plate, Access		Appelez-nous	-
21	0058311		Plate, Main Inlet Wire		Appelez-nous	-
22	Y0091587		Cable, Clip Esm		Appelez-nous	-
23	31825104W		Panel, Side (wht)		Appelez-nous	-
24	316325W		Filler Strip (wht)		Appelez-nous	-
25	0304282		Retainer, Insulation (side)		Appelez-nous	-
26	Y00000000		See Note Front Frame-short(not Field Replacable)		Appelez-nous	-
27	Y0314883		Leveling Leg\bottom Brace Rt		Appelez-nous	-
28	314187B		Leg,leveling Xxx		Appelez-nous	-
29	31733201		Track, Mounting		Appelez-nous	-
30	31715202		Hinge, Oven Door (rt)		Appelez-nous	-
31	Y0309061		Retainer, Insulation (bottom)		Appelez-nous	-
32	Y0315146		Shield, Heat		Appelez-nous	-
34	31715201		Hinge, Oven Door (lt)		Appelez-nous	-
35	WP4159193		Screw, No.10-32 X 5/16 Pan Ph H   (Replaces: 31750521)				$ 4.29
36	WP7101P126-60		Screw, No.10-12 X 500`` Ab (zn)   (Replaces: 31750507)			Immediately	$ 6.85
37	Y0314882		Leveling Leg\bottom Brace Lt		Appelez-nous	-
38	Y0316882		Switch- Oven Door		Appelez-nous	-
39	31750707		Screw, No.8-18 X 1/2 Washer Hd		Appelez-nous	-
40	WP3400029		Nut, Hex Keps No.10-32   (Replaces: 31750103)			Immediately	$ 6.98
41	31733401		Roller, Drawer				$ 5.75
42	31750717		Bolt, Shoulder 10-32		Appelez-nous	-
NI	31750517		Screw, No.10-32x1/2 (pan Ph Hd)		Appelez-nous	-
NI	31750511		Screw, No.10-32x1/2 (ph Taptite)		Appelez-nous	-
NI	WPY04100059		Screw, No.6-20 X .750 Pan Hd Ph   (Replaces: Y0092370)				$ 6.96
