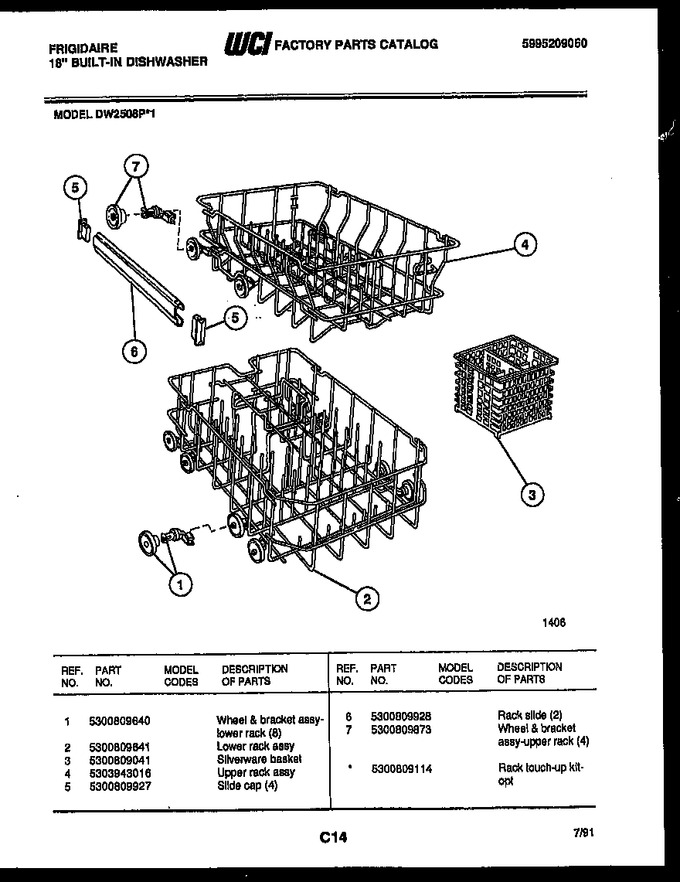

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304532229 | Wheel & Bracket Assy - Lower Rack (8) (Replaces: 5300809640) |
|
Immediately | $ 12.75 | ||||
| 2 | 5300809641 | Lower Rack Assy |
|
- | |||||
| 3 | 5300809041 | Silverware Basket |
|
- | |||||
| 4 | 5303943016 | Upper Rack Assy |
|
- | |||||
| 5 | 5300809927 | Slide Cap (4) |
|
Immediately | $ 3.69 | ||||
| 6 | 5300809928 | Rack Slide (2) |
|
- | |||||
| 7 | 5300809873 | Wheel & Bracket Assy-upper Rack (4) |
|
$ 32.80 | |||||
| *52018 | 5300809114 | Rack Touch-up Kit-opt |
|
- |
