02 - Console And Control Parts
03 - Cam
04 - Door Parts
05 - Tub And Frame Parts
06 - Motor Pump Parts
07 - Cabinet Parts
08 - Top Parts
09 - Racks And Trays
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

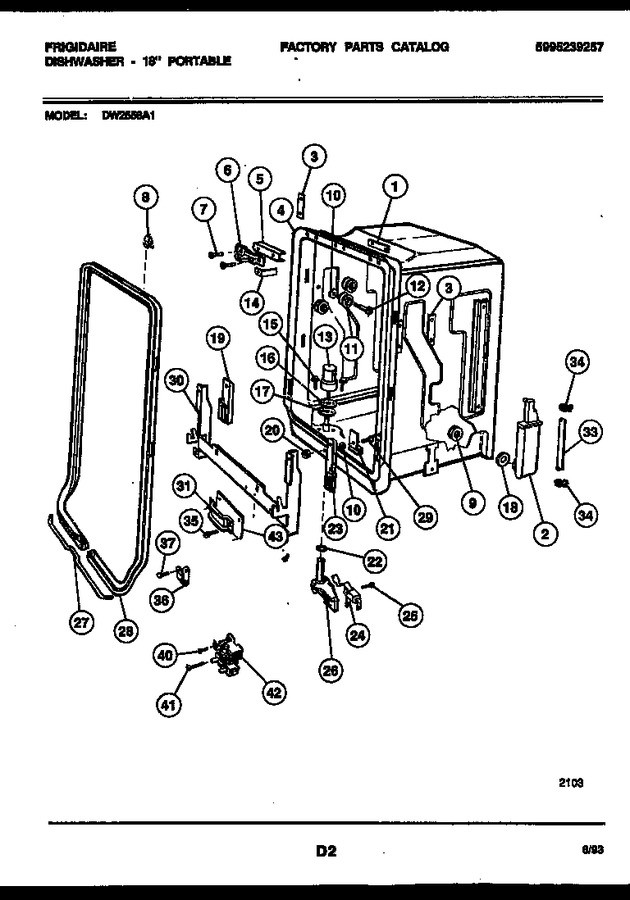

| 1 | 5300808868 | Latch Tapping Plate |
|
- | |||||
| 2 | 5300806470 | Water Inlet Assy |
|
- | |||||
| 3 | 5300807038 | Tapping Plate (6) |
|
$ 4.94 | |||||
| 4 | 5300809716 | Tub & Gasket Assy |
|
- | |||||
| 5 | 5300809214 | Shim |
|
- | |||||
| 6 | 5300807015 | Door Strike |
|
- | |||||
| 7 | 131302901 | Screw-10 X 3/4`` (2) (Replaces: 5300806890) |
|
$ 4.96 | |||||
| 8 | 5300805763 | Tub Gasket Clip Kit-includes Key 21 |
|
- | |||||
| 9 | 5300805669 | Nut |
|
- | |||||
| 10 | 5300809044 | Washer (8) |
|
- | |||||
| 11 | 5304507405 | Tub Roller (8) (Replaces: 154080001) |
|
Immediately | $ 25.79 | ||||
| 12 | 5300808564 | Screw & Washer Kit (includes Key 10) (8) |
|
$ 34.02 | |||||
| 13 | 154112701 | Float |
|
- | |||||
| 14 | 5300807454 | Tub Pad (2) |
|
- | |||||
| 15 | 154103701 | Screw-float (2) |
|
- | |||||
| 16 | 5300808064 | Float Tube Plate |
|
- | |||||
| 17 | 5300808063 | Float Tube Gasket |
|
$ 6.14 | |||||
| 18 | 154053601 | Water Inlet Gasket |
|
- | |||||
| 19 | 5300807599 | Counterbalance Arm Guide-lh |
|
- | |||||
| 20 | 5300803346 | Nut |
|
- | |||||
| 21 | 5300808115 | Dam Clip |
|
- | |||||
| 22 | 5300807759 | O - Ring |
|
$ 4.88 | |||||
| 23 | 5300807600 | Counterbalance Arm Guide-rh |
|
- | |||||
| 24 | 5300809863 | Float Switch |
|
$ 65.73 | |||||
| 25 | 5300809864 | Screw-4-24 X 5/8`` |
|
- | |||||
| 26 | 5300809859 | Float Switch Kit |
|
- | |||||
| 27 | 154059402 | Junction Rod |
|
- | |||||
| 28 | 5300809633 | Tub Gasket & Wire Assy-includes Key 8 & 27 |
|
$ 201.76 | |||||
| 29 | 5300803319 | Screw-8-32 X 1/2`` |
|
- | |||||
| 30 | 5300809215 | Hinge Weld Assy |
|
- | |||||
| 31 | 5300806723 | Wire Clamp |
|
- | |||||
| 33 | 5300807891 | Water Inlet Tubing-includes Key 34 |
|
- | |||||
| 34 | 5300807813 | Clamp (2) |
|
- | |||||
| 35 | 154419403 | Screw-8 X 3/8`` (9) (Replaces: 5300808658) |
|
$ 13.10 | |||||
| 36 | 240396801 | Clamp (Replaces: 5300808442) |
|
$ 19.13 | |||||
| 37 | 5304480396 | Screw-8 X 3/8`` (Replaces: 5300803416) |
|
$ 11.34 | |||||
| 40 | 3018140 | Screw-8-32 X 1/4`` |
|
- | |||||
| 41 | 5300804672 | Screw-8-32 X 1 1/4`` |
|
- | |||||
| 42 | 5303351059 | Motor Relay |
|
$ 8.35 | |||||
| 43 | 5300809144 | Wire Shield |
|
- | |||||
| *77089 | 5304469950 | Tub Touch-up Kit-optional (Replaces: 5300807509) |
|
Immediately | $ 89.95 | ||||
| 30A | 5300806663 | Screw-lower Hinge (2) |
|
- | |||||
| 42A | 154109801 | Shield-relay (non-illustrated) |
|
- |
