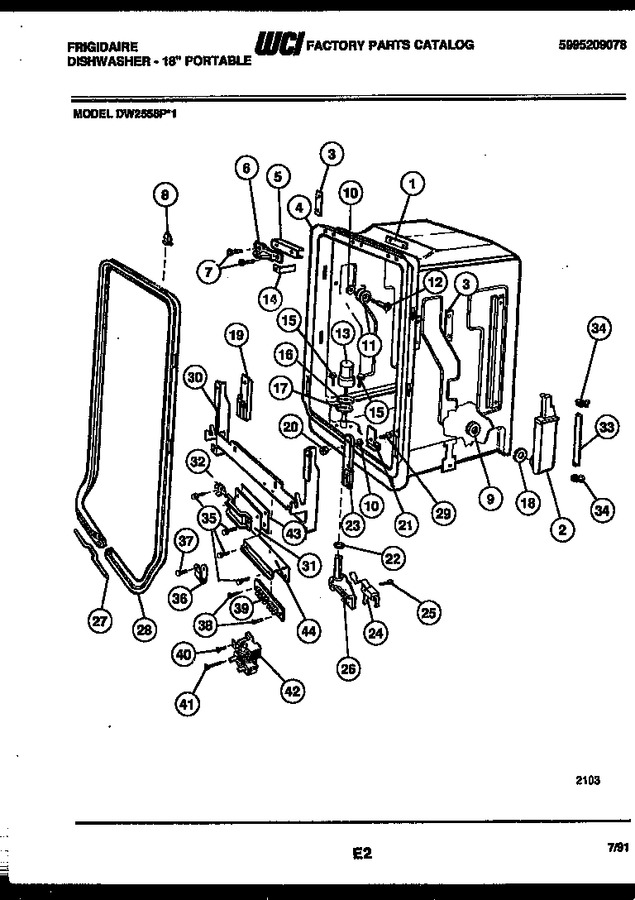

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300808868		Latch Tapping Plate		Appelez-nous	-
2	5300806470		Water Inlet Assy		Appelez-nous	-
3	5300807038		Tapping Plate (6)				$ 4.94
4	5300809716		Tub & Gasket Assy		Appelez-nous	-
5	5300809214		Shim		Appelez-nous	-
6	5300807015		Door Strike		Appelez-nous	-
7	131302901		Screw-10 X 3/4`` (2)   (Replaces: 5300806890)				$ 4.96
8	5300805763		Tub Gasket Clip Kit-includes Key 21		Appelez-nous	-
9	5300805669		Nut		Appelez-nous	-
10	5300809044		Washer		Appelez-nous	-
11	5304507405		Tub Roller   (Replaces: 5300809917)			Immediately	$ 25.79
12	5300808564		Screw & Washer Kit-includes Key 10				$ 34.02
13	5300809861		Float		Appelez-nous	-
14	5300807454		Tub Pad (2)		Appelez-nous	-
15	5300807268		Screw 10 X 1``				$ 5.93
16	5300808064		Float Tube Plate		Appelez-nous	-
17	5300808063		Float Tube Gasket				$ 6.14
18	5300803573		Water Inlet Gasket		Appelez-nous	-
19	5300807599		Counterbalance Arm Guide-lh		Appelez-nous	-
20	5300803346		Nut		Appelez-nous	-
21	5300808115		Dam Clip		Appelez-nous	-
22	5300807759		O - Ring				$ 4.88
23	5300807600		Counterbalance Arm Guide-rh		Appelez-nous	-
24	5300809863		Float Switch				$ 65.73
25	5300809864		Screw-4-24 X 5/8``		Appelez-nous	-
26	5300809859		Float Switch Kit		Appelez-nous	-
27	5300809634		Junction Rod		Appelez-nous	-
28	5300809633		Tub Gasket & Wire Assy-includes Key 8 & 27				$ 201.76
29	5300803319		Screw-8-32 X 1/2``		Appelez-nous	-
30	5300809215		Hinge Weld Assy		Appelez-nous	-
31	5300806723		Wire Clamp		Appelez-nous	-
32	5300807213		Grounding Terminal		Appelez-nous	-
33	5300807891		Water Inlet Tubing-includes Key 34		Appelez-nous	-
34	5300807813		Clamp (2)		Appelez-nous	-
35	154419403		Screw-8 X 3/8`` (9)   (Replaces: 5300808658)				$ 13.10
36	240396801		Clamp   (Replaces: 5300808442)				$ 19.13
37	5304480396		Screw-8 X 3/8``   (Replaces: 5300803416)				$ 11.34
38	5300807501		Screw-8 X 1/2`` (2)		Appelez-nous	-
39	5300809830		Terminal Block Assy		Appelez-nous	-
40	3018140		Screw-8-32 X 1/4``		Appelez-nous	-
41	3018141		Screw-8-32 X 1 1/4``		Appelez-nous	-
42	5300805255		Motor Relay		Appelez-nous	-
43	5300809144		Wire Shield		Appelez-nous	-
44	5300807849		Terminal Board Bracket		Appelez-nous	-
*50150	5304469950		Tub Touch-up Kit-optional   (Replaces: 5300807509)			Immediately	$ 89.95
