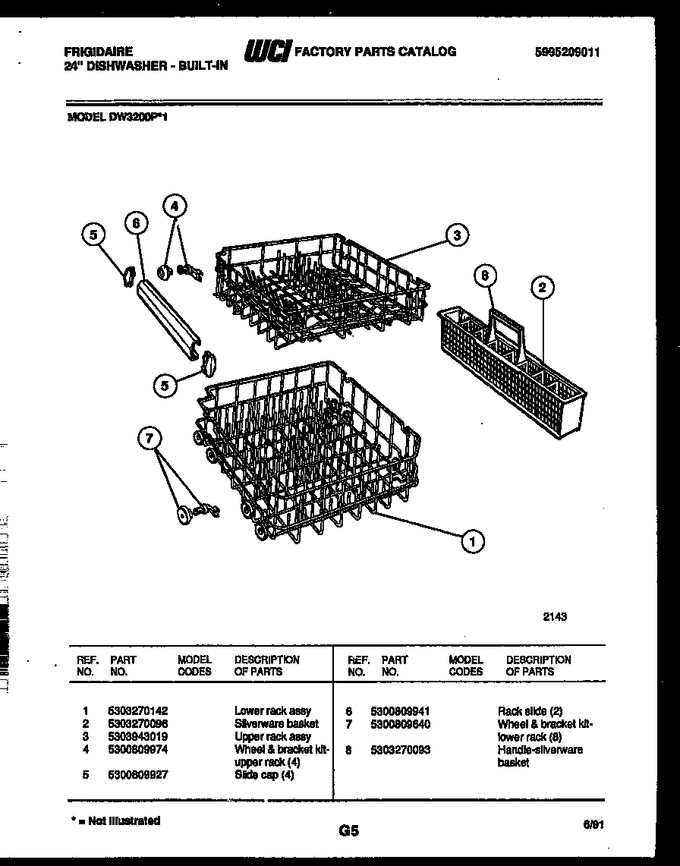

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303270142 | Lower Rack Assy |
|
- | |||||
| 2 | 5304509753 | Silverware Basket (Replaces: 5303270096) |
|
Immediately | $ 36.87 | ||||
| 3 | 5303943019 | Upper Rack Assy |
|
- | |||||
| 4 | 5304535381 | Wheel & Bracket Kit - Upper Rack (4) (Replaces: 5300809974) |
|
Immediately | $ 10.05 | ||||
| 5 | 5300809927 | Slide Cap (4) |
|
Immediately | $ 3.69 | ||||
| 6 | 5300809941 | Rack Slide (2) |
|
- | |||||
| 7 | 5304532229 | Wheel & Bracket Kit - Lower Rack (8) (Replaces: 5300809640) |
|
Immediately | $ 12.75 | ||||
| 8 | 5303270093 | Handle-silverware Basket |
|
- |
