01 - Cover Sheet
02 - Oven,cabinet

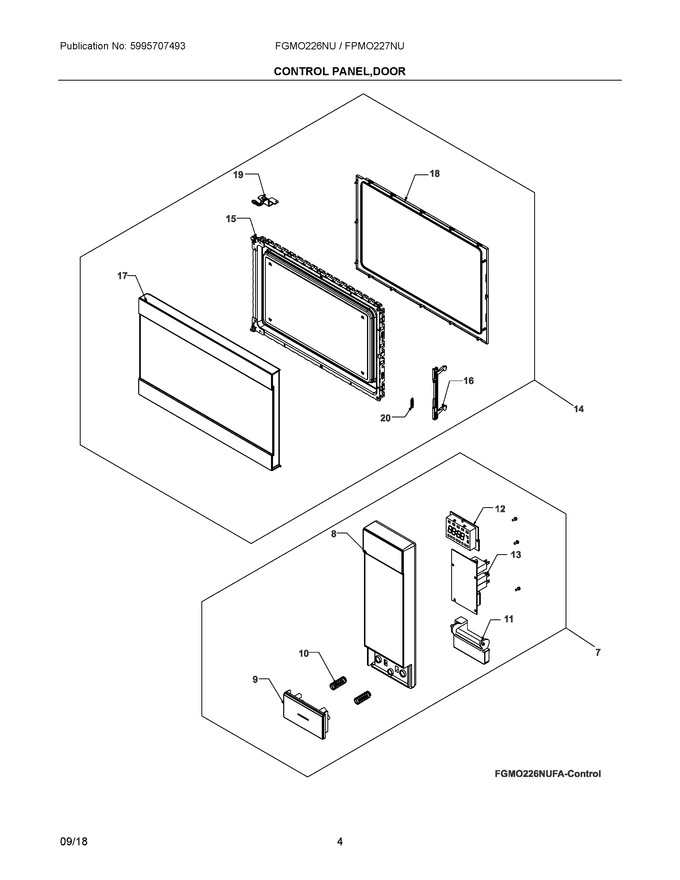

03 - Control Panel,door
04 - Wiring Diagram ? Fgmo226nuda Fgmo226nufa
05 - Wiring Diagram ? Fpmo227nufa
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 7 | 5304519355 | Control Panel, Assembly, Black Stainless |
|
- | |||||
| 8 | 5304519356 | Control Panel, Assembly, Black Stainless |
|
- | |||||
| 9 | 5304519357 | Button, Door Opening, Black Stainless |
|
- | |||||
| 10 | 5304519324 | Spring, Door Button |
|
$ 5.07 | |||||
| 11 | 5304519325 | Lever, Door Opening |
|
Immediately | $ 12.44 | ||||
| 12 | 5304519326 | Pc Board, Display |
|
$ 184.68 | |||||
| 13 | 5304519327 | Pc Board, Power/control |
|
- | |||||
| 14 | 5304519358 | Door Assembly, Complete, Black Stainless |
|
- | |||||
| 15 | 5304519329 | Frame, Assembly, Door |
|
- | |||||
| 16 | 5304519330 | Latch Assembly, Door |
|
$ 12.29 | |||||
| 17 | 5304519359 | Door Assembly, Outer, Black Stainless |
|
- | |||||
| 18 | 5304519332 | Gasket, Door |
|
$ 33.51 | |||||
| 19 | 5304519333 | Hinge, Door, Upper |
|
$ 24.62 | |||||
| 20 | 5304519334 | Spring, Door Latch |
|
$ 5.21 |
