01 - Cover Sheet

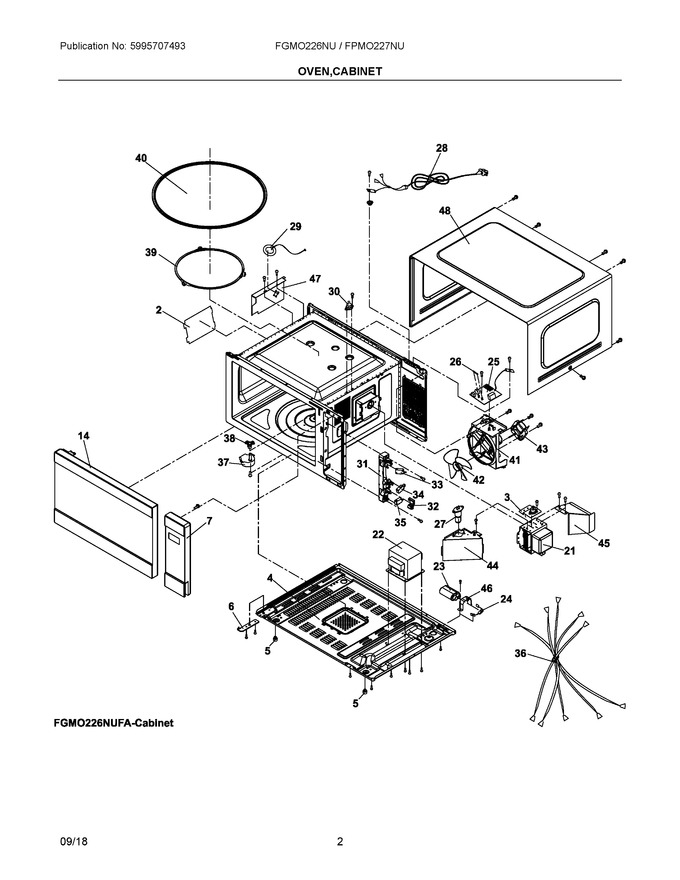

02 - Oven,cabinet
03 - Control Panel,door
04 - Wiring Diagram ? Fgmo226nuda Fgmo226nufa
05 - Wiring Diagram ? Fpmo227nufa
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5304505675 | Cover, Waveguide |
|
$ 11.57 | |||||
| 3 | 5304519318 | Thermostat, Assembly |
|
$ 22.12 | |||||
| 4 | 5304519319 | Base, Plate |
|
- | |||||
| 5 | 5304505674 | Foot, Cabinet Support, Rubber |
|
$ 11.57 | |||||
| 6 | 5304519320 | Hinge, Door, Lower |
|
- | |||||
| 7 | 5304538971 | Control Panel, Assembly, Stainless, Complete, W/button-boards (Replaces: 5304519321) |
|
- | |||||
| 14 | 5304519328 | Door Assembly, Complete, Stainless |
|
$ 458.58 | |||||
| 21 | 5304519335 | Magnetron |
|
$ 354.20 | |||||
| 22 | 5304519336 | Transformer, High Voltage |
|
$ 380.88 | |||||
| 23 | 5304519337 | Capacitor, High Voltage |
|
$ 92.54 | |||||
| 24 | 5304513459 | Diode, High Voltage |
|
Immediately | $ 30.37 | ||||
| 25 | 5304525109 | Filter, Noise, Electronic (Replaces: 5304512523) |
|
$ 86.00 | |||||
| 26 | 5304509451 | Fuse |
|
Immediately | $ 13.01 | ||||
| 27 | 5304519338 | Lamp Assembly, Incandescent |
|
$ 22.90 | |||||
| 28 | 5304519339 | Power Cord, Electric Servic |
|
$ 99.05 | |||||
| 29 | 5304509652 | Sensor, Humidity |
|
$ 305.46 | |||||
| 30 | 5304519340 | Thermostat, 120/80 *h |
|
$ 17.35 | |||||
| 31 | 5304519341 | Bracket, Latch |
|
Immediately | $ 25.88 | ||||
| 32 | 5304519342 | Lever, Latch |
|
$ 7.28 | |||||
| 33 | 5304519343 | Switch, Micro, Upper |
|
Immediately | $ 26.95 | ||||
| 34 | 5304512529 | Switch, Monitor |
|
Immediately | $ 37.96 | ||||
| 35 | 5304515182 | Switch, Interlock |
|
Immediately | $ 34.84 | ||||
| 36 | 5304519344 | Harness, Wiring, Main |
|
- | |||||
| 37 | 5304519345 | Motor, Turntable |
|
$ 65.12 | |||||
| 38 | 5304519346 | Coupler, Turntable |
|
$ 9.45 | |||||
| 39 | 5304519347 | Ring Assembly, Rotating |
|
$ 37.45 | |||||
| 40 | 5304519348 | Tray, Glass |
|
$ 195.19 | |||||
| 41 | 5304519349 | Guide, Fan |
|
- | |||||
| 42 | 5304519350 | Blade, Fan |
|
$ 16.92 | |||||
| 43 | 5304519351 | Motor, Fan |
|
$ 90.70 | |||||
| 44 | 5304519352 | Guide, Wind |
|
- | |||||
| 45 | 5304513477 | Guide, Air, Magnetron |
|
$ 21.55 | |||||
| 46 | 5304509477 | Retainer, Capacitor Strap |
|
- | |||||
| 47 | 5304519353 | Insulator, Heat |
|
- | |||||
| 48 | 5304519354 | Wrapper, Outer Case |
|
$ 130.13 |
