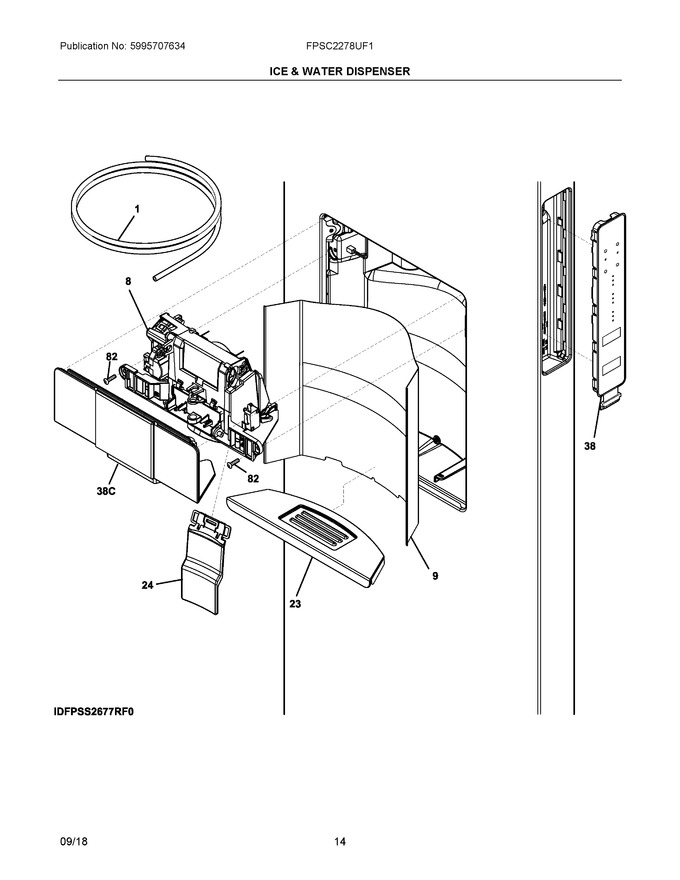

08 - Ice & Water Dispenser


09 - Ice Container


10 - Ice Maker


11 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218976438		Tube, Water, 62", Natural 62", Door, Btm Door To Dsp			Immediately	$ 20.56
8	242270207		Module Assembly, Ice & Water, Complete				$ 164.57
9	809089802		Liner, Sump Back, Stainless		Appelez-nous	-
23	5304501179		Sump Assembly, Ice & Water, Stainless   (Replaces: 5304504414)				$ 170.63
24	5304501181		Actuator, Ice Lever, Silver				$ 100.86
38	242048230		User Interface,, Assembly, Black, W/board & Pad				$ 243.35
82	240363403		Screw, 8-18 X 0.500, 2		Appelez-nous	-
38C	809091204		Control Assembly, Dispenser Uib   (Replaces: 809091202)				$ 296.52
NI	5303918744		Kit, Dspnsr Heater, Dc				$ 203.24
NIA	218976421		Tube-water Inlet, Valve To Door				$ 20.56
