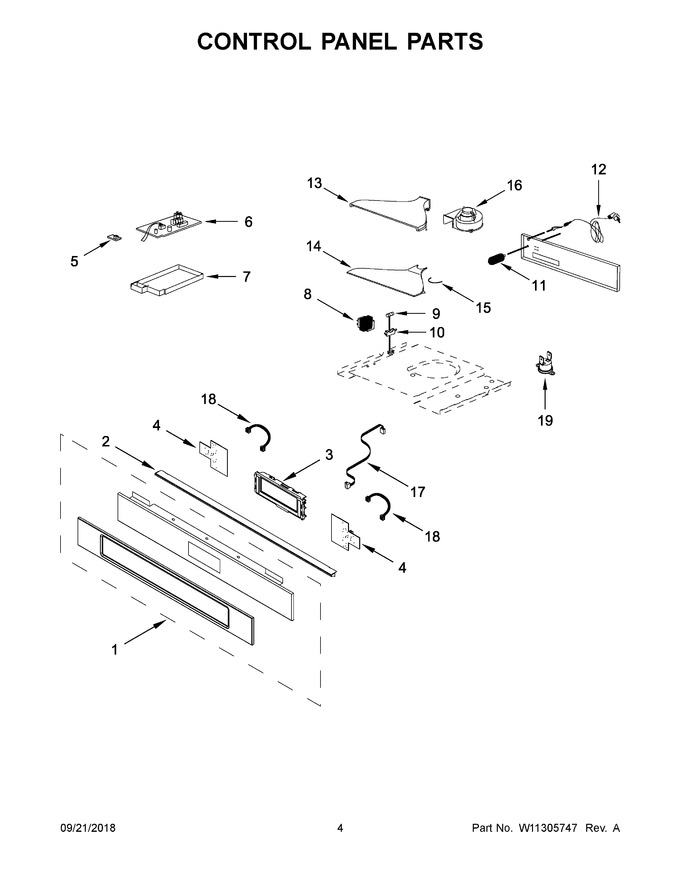

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10816254 | Panel, Control With Membrane |
|
$ 720.05 | |||||
| 2 | W10517985 | Vent, Trim Control Panel |
|
$ 98.60 | |||||
| 3 | W11305769 | User Interface, Display (Replaces: W10815542) |
|
$ 458.33 | |||||
| 4 | WPW10517895 | Board, Electronic Control (Replaces: W10517895) |
|
Immediately | $ 78.39 | ||||
| 5 | W10587536 | Board, Water Level Sensor |
|
$ 47.84 | |||||
| 6 | W10587535 | Appliance Manager |
|
$ 276.91 | |||||
| 7 | W10586529 | Holder, Appliance Manager |
|
- | |||||
| 8 | W11305885 | Transformer (Replaces: 481214528033) |
|
- | |||||
| 9 | WP4375321 | Fuse (Replaces: W11305892) |
|
Immediately | $ 16.45 | ||||
| 10 | W10245194 | Block, Fuse (Replaces: W10588576) |
|
$ 74.84 | |||||
| 11 | W10549523 | Filter, Line Noise |
|
Immediately | $ 133.37 | ||||
| 12 | W10587534 | Cord, Power |
|
- | |||||
| 13 | W10587870 | Top, Air Guide |
|
- | |||||
| 14 | W10587873 | Bottom, Air Guide |
|
- | |||||
| 15 | W10588568 | Gasket, Air Guide |
|
- | |||||
| 16 | W10586916 | Fan, Cooling |
|
$ 302.80 | |||||
| 17 | W10587552 | Harness, Display To Appliance Manager 5 Pin Ribbon Cable |
|
$ 39.35 | |||||
| 18 | 481068967651 | Harness, Display To Power Unit |
|
- | |||||
| 19 | W11305902 | Thermostat (Replaces: W11305872) |
|
$ 159.21 |
