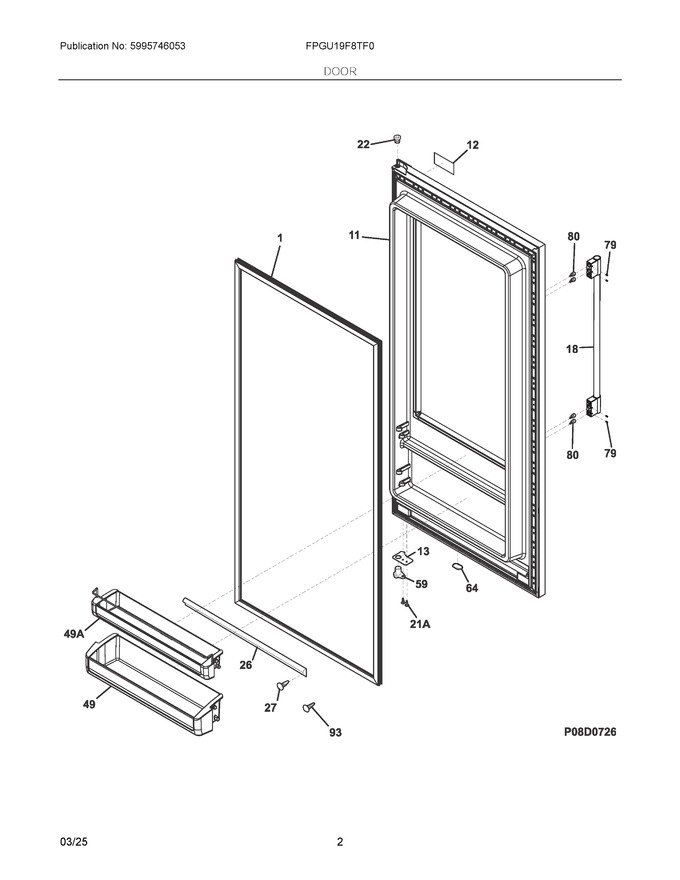

02 - Door
03 - Cabinet
04 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304505782 | Gasket |
|
Immediately | $ 235.60 | ||||
| 11 | 5304524335 | Door, Assembly, W/gasket (Replaces: 5304519622) |
|
$ 943.49 | |||||
| 12 | 809108704 | Nameplate, Frig Pro (Replaces: 809108701) |
|
Immediately | $ 44.19 | ||||
| 13 | 5304517971 | Stop, Door |
|
- | |||||
| 18 | 5304517972 | Handle, Stainless |
|
- | |||||
| 22 | 216970801 | Bearing, Hinge, Gray, Top |
|
$ 4.25 | |||||
| 26 | 216524202 | Gasket, Secondary |
|
- | |||||
| 27 | 5303212828 | Clip, Panel Mtg |
|
$ 16.63 | |||||
| 49 | 297295400 | Bin-door, Gallon, (2) |
|
$ 170.94 | |||||
| 59 | 297302900 | Bearing, Door Stop |
|
$ 7.00 | |||||
| 64 | 297014702 | Plug-button, Door Base |
|
$ 9.41 | |||||
| 79 | 218755405 | Screw, Set, 10-32 X 0.500 (Replaces: 218755407) |
|
Immediately | $ 20.56 | ||||
| 80 | 218755504 | Screw, Shoulder, #10-ab, Handle Mounting |
|
Immediately | $ 18.60 | ||||
| 93 | 297410600 | Screw, 8-18 X .500 |
|
Immediately | $ 3.55 | ||||
| 21A | 297197500 | Screw, Door Stop Mtg, Fh38-16x.750, P Twin |
|
$ 14.46 | |||||
| 49A | 5304507862 | Bin-door, Shallow, With Trim |
|
$ 112.46 | |||||
| NI | 297142600 | Screw, Blunt, 8-32 X 5/8 |
|
$ 13.01 | |||||
| NI | 216858001 | Screw, 8-18x.50 Ab, #10 |
|
Immediately | $ 10.85 | ||||
| NI | 297048000 | Screw, Anchor, #8, White |
|
$ 12.05 | |||||
| NIA | 297175300 | Wrench, Allen |
|
$ 15.49 | |||||
| NIA | 5304406520 | Clip, Panel Mtg Kit, (40) |
|
$ 125.83 |
