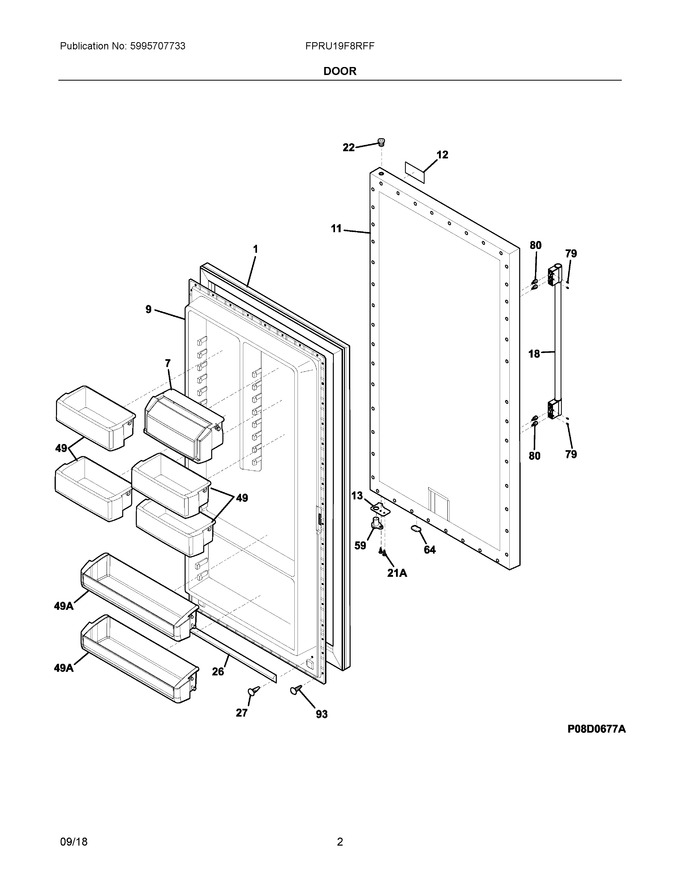

02 - Door
03 - Cabinet
04 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304505782 | Gasket |
|
Immediately | $ 235.60 | ||||
| 7 | 297326200 | Dairy Bin, Assembly |
|
$ 122.58 | |||||
| 9 | 297280800 | Panel-inner Door, Frzr |
|
Immediately | $ 223.97 | ||||
| 11 | 297329325 | Panel-outer Door, Stainless Steel |
|
$ 869.64 | |||||
| 12 | 809108704 | Nameplate, Frig Pro (Replaces: 809108701) |
|
Immediately | $ 44.19 | ||||
| 13 | 297302800 | Door Stop, Rh |
|
$ 22.16 | |||||
| 18 | 297330301 | Handle Assembly, Stainless, W/endcaps |
|
$ 250.28 | |||||
| 22 | 216970801 | Bearing, Hinge, Gray, Top |
|
$ 4.25 | |||||
| 26 | 216524201 | Gasket, Secondary |
|
$ 49.62 | |||||
| 27 | 5303212828 | Clip, Panel Mtg |
|
$ 16.63 | |||||
| 49 | 297295300 | Bin-door, 2-liter |
|
$ 139.39 | |||||
| 59 | 297302900 | Bearing, Door Stop |
|
$ 7.00 | |||||
| 64 | 297014702 | Plug-button, Door Base |
|
$ 9.41 | |||||
| 79 | 218755405 | Screw-set, 10-32 X 0.500 (Replaces: 218755407) |
|
Immediately | $ 20.56 | ||||
| 80 | 218755504 | Screw, Shoulder, #10-ab, Handle Mounting |
|
Immediately | $ 18.60 | ||||
| 93 | 297410600 | Screw, 8-18 X .500 |
|
Immediately | $ 3.55 | ||||
| 49A | 297295401 | Bin-door, Gallon, W/trim |
|
$ 152.41 | |||||
| NI | 216858001 | Screw, 8-18x.50 Ab, #10 |
|
Immediately | $ 10.85 | ||||
| NI | 297048000 | Screw, Anchor, #8, White |
|
$ 12.05 | |||||
| NI | 297355300 | Label, Quick Start |
|
- | |||||
| NIA | 240537301 | Nut-anchor, Door Hdl Screw |
|
$ 11.34 | |||||
| NIA | 5304406520 | Clip, Panel Mtg Kit, (40) |
|
$ 125.83 | |||||
| NIB | 297175300 | Wrench, Allen |
|
$ 15.49 |
