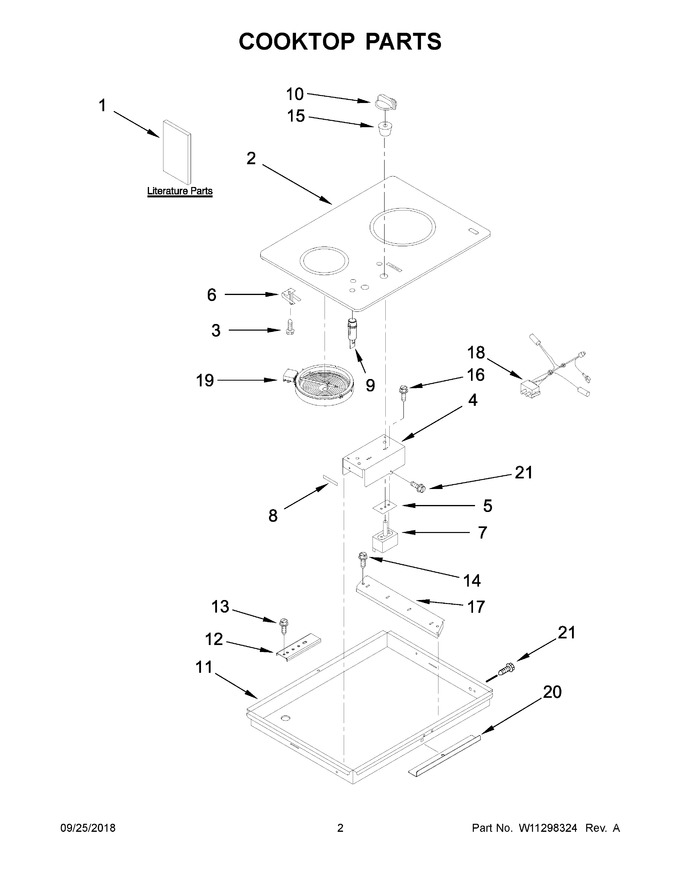

02 - Cooktop Parts
03 - Optional Parts (not Included)
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8286066 | Instructions, Installation |
|
- | |||||
| 2 | W10875085 | Cooktop, Glass (black) (Replaces: W10566742) |
|
$ 466.49 | |||||
| 3 | WP486754 | Screw (Replaces: 246119) |
|
$ 6.75 | |||||
| 4 | W10414006 | Bracket, Mounting |
|
$ 69.52 | |||||
| 5 | 3183956 | Seal, Switch Cover |
|
$ 41.81 | |||||
| 6 | 9759094 | Spring, Locator |
|
$ 6.34 | |||||
| 7 | WP3191049 | Switch, Infinite (front) (Replaces: 3191049) |
|
$ 150.25 | |||||
| 8 | W10491984 | Seal, Limiter (Replaces: 3192439) |
|
$ 10.33 | |||||
| 9 | 3193012 | Light, Indicator |
|
$ 99.17 | |||||
| 10 | WP9750372FF | Knob, Control (black) (Replaces: 9750372FF) |
|
Immediately | $ 18.86 | ||||
| 11 | 8286988 | Box, Burner |
|
- | |||||
| 12 | 8186533 | Bracket, Cooktop Mounting (Replaces: 4455917) |
|
$ 79.60 | |||||
| 13 | WP3400093 | Screw (Replaces: 3400093) |
|
$ 6.47 | |||||
| 14 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 15 | 8285469 | Grommet (black) |
|
$ 45.00 | |||||
| 16 | WP7101P309-60 | Screw (Replaces: 7101P309-60) |
|
Immediately | $ 6.26 | ||||
| 17 | 3192721 | Rail, Element Support |
|
- | |||||
| 18 | 3192612 | Lamp, Hot Surface Indicator |
|
- | |||||
| 19 | W11171119 | Element (1200w) (front) (Replaces: 8273994) |
|
Immediately | $ 164.01 | ||||
| 20 | 4455364 | Bracket, Support |
|
$ 82.35 | |||||
| 21 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.04 | ||||
| 19A | WP8273993 | Element (1800w) (rear) (Replaces: 8273993) |
|
Immediately | $ 220.06 | ||||
| 1A | 3192609 | Wiring Diagram |
|
- | |||||
| 1B | W10162162 | Use & Care Guide |
|
- | |||||
| 1C | 8304571 | Instructions, Undercounter |
|
- | |||||
| 7A | WP3191050 | Switch, Infinite (rear) (Replaces: 3191050) |
|
Immediately | $ 149.72 | ||||
| NI | WP3400015 | Screw, Grounding (Replaces: 3400015) |
|
$ 6.47 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | WP8286642 | Tape, Foam (Replaces: 8286642) |
|
Immediately | $ 105.67 | ||||
| NI | W11190493 | Assembly, Conduit |
|
$ 201.24 | |||||
| NI | WP98997 | Clip (Replaces: 98997) |
|
$ 9.98 | |||||
| NI | W11171891 | Harness, Cooktop |
|
$ 197.43 |
