SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

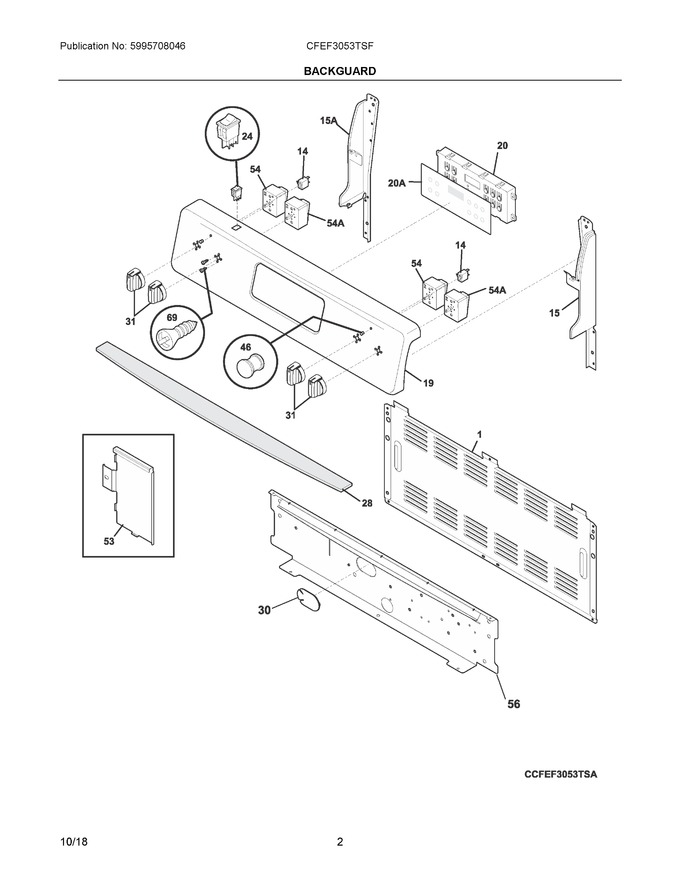

1	316281802		Shield, Backguard, Rear Wall   (Replaces: 316281801)				$ 57.64
14	316022500		Light/lamp, Indicator, Black, 125 V			Immediately	$ 53.57
15	5304493644		Cap, End, Black, Rh				$ 66.74
19	5304509215		Panel, Backguard				$ 129.62
20	5304532117		Controller, Electronic, Es300   (Replaces: 5304508925)			Immediately	$ 124.43
24	5304527841		Switch, Rocker, Black, Oven Light   (Replaces: 5304515139)			Immediately	$ 11.38
28	316528700		Insulation, Manifold Panel				$ 89.31
30	316577600		Plug, Button, Oval, Harness				$ 14.89
31	5304508956		Knob, Control, Black			Immediately	$ 60.67
46	316557300		Lens-light/lamp, Indicator, Clear			Immediately	$ 16.77
53	316355000		Shield, Flue, Inner		Appelez-nous	-
54	316436000		Switch, Infinite, Small Element			Immediately	$ 80.34
56	316234045		Shield, Backguard, Black, Inner				$ 66.74
69	5303288565		Screw, Truss Sqdr, 8-32 X 3/16, Switch Mtg				$ 3.12
15A	5304493646		Cap, End, Black, Lh			Immediately	$ 66.74
20A	316419145		Overlay, Clock, Black, Es300			Immediately	$ 50.06
54A	316436001		Switch, Infinite, Large Element			Immediately	$ 51.68
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	5308014215		Screw, 6-20 X 0.312				$ 2.28
