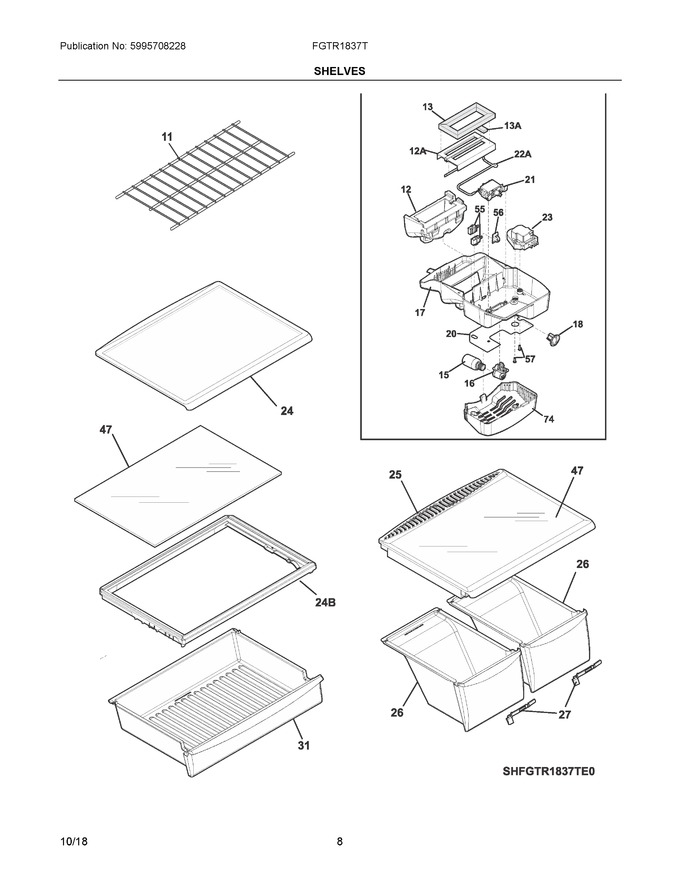

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	240358008		Shelf, Freezer				$ 91.80
12	5304511163		Diffuser-air				$ 42.81
13	242240603		Gasket Seal				$ 78.94
15	5304517886		Light Bulb, Led   (Replaces: 5304498578)			Immediately	$ 73.06
16	240590403		Socket-light				$ 26.54
17	530451165		Control Box Housing		Appelez-nous	-
18	240360801		Knob, Temp Control				$ 43.95
20	5304511166		Heat Shield		Appelez-nous	-
21	241537107		Control Cold Foshan				$ 143.63
23	241705102		Timer-defrost			Immediately	$ 113.51
24	240358926		Shelf-"spill-safe", Sliding   (Replaces: 240358925)			Immediately	$ 129.17
25	242201802		Cover-crisper Pan			Immediately	$ 123.10
26	242218505		Pan, Crisper, (2), W/humid Cntl				$ 147.13
27	242215902		Slide, Humidity Contrl		Appelez-nous	-
31	242322201		Meat Pan, Fw Pantry, W/slide Clips				$ 266.47
47	240350608		Insert-pan Cover, 23.82" X 15.50", Glass			Immediately	$ 45.50
55	530451167		Holder, Electronic Test		Appelez-nous	-
56	218515401		Clip-grille				$ 17.72
57	5304455649		Screw, Pan Hd, 6-20 X 0.438				$ 17.01
74	5304511168		Light Shield		Appelez-nous	-
12A	5304511164		Plate Diffuser		Appelez-nous	-
13A	240346703		Foam Tape   (Replaces: 240346712)				$ 2.28
22A	240468203		Sleeve-plastic				$ 78.87
24B	242218602		Cover, Deli Pan, Full Width, W/slide			Immediately	$ 121.78
NI	5304512164		Label-energy/energuide		Appelez-nous	-
NIA	240349801		Clip-slide, Pan				$ 20.48
NIA	241705801		Spacer-shelf				$ 7.09
