01 - Cover Sheet
02 - Door
03 - Cabinet
04 - System

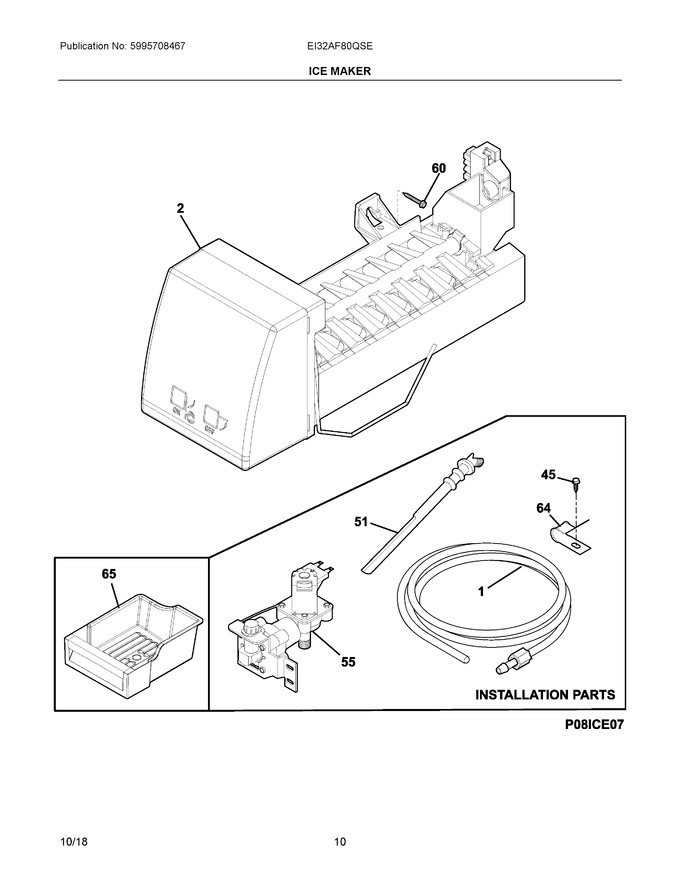

05 - Ice Maker
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 297044904 | Tube-water Inlet |
|
$ 48.44 | |||||
| 2 | 297345201 | Ice Maker, Radius Cube, 115 V, Svce |
|
Immediately | $ 245.80 | ||||
| 45 | 5304455650 | Screw, Hex Washer Head, 8-15a X 0.625, Low Profile |
|
$ 14.18 | |||||
| 51 | 216887500 | Tube, Water, Ice Maker |
|
$ 48.44 | |||||
| 55 | 242252603 | Valve-water, Solenoid Assy |
|
Immediately | $ 73.14 | ||||
| 60 | 218362501 | Screw, Hex Washer Head, 8-18ab X 1.250, Spacer, (2) |
|
$ 12.05 | |||||
| 64 | 5304455846 | Clamp, .31 Id, Steel, Water Tube |
|
$ 10.63 | |||||
| 65 | 297318300 | Container, Ice Bin |
|
$ 218.72 | |||||
| NIA | 240561701 | Seal-water Inlet, Inlet Valve, To Ice Maker |
|
Immediately | $ 20.56 |
