01 - Cover Sheet


02 - Control Panel

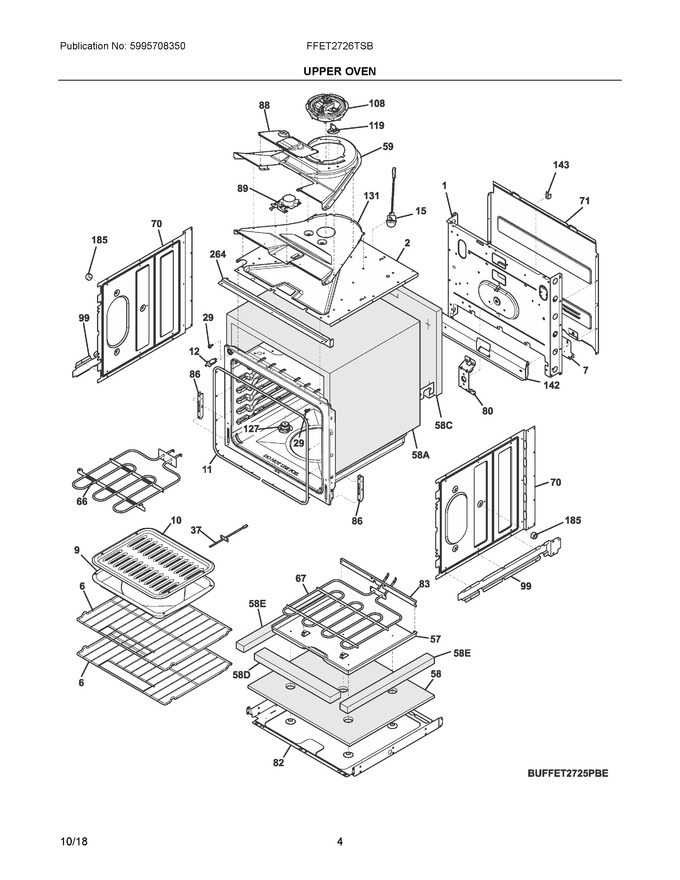

03 - Upper Oven


04 - Lower Oven


05 - Doors


06 - Wiring Diagram


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304506958		Panel, Main Back		Appelez-nous	-
2	139027804		Shield, Insulation, Top		Appelez-nous	-
6	139011901		Rack, Oven, W/handle   (Replaces: 139011900)				$ 36.24
7	5304506960		Panel, Service, Main Back		Appelez-nous	-
9	318138801		Pan, Broileroptional Access0ry		Appelez-nous	-
10	318126401		Insert, Broiler Panoptional Access0ry		Appelez-nous	-
11	807545501		Seal, Oven Door, Gray			Immediately	$ 81.39
12	808136601		Switch, Light, Door   (Replaces: 318394802)			Immediately	$ 44.04
15	5304528790		Lamp Assembly, Round, Halogen, W/lens, W/bulb   (Replaces: 139009000)			Immediately	$ 20.56
29	316517600		Bumper, Front, Main				$ 12.05
37	5304504897		Sensor, Oven Temp Probe			Immediately	$ 48.13
57	5304538692		Box, Bake Element   (Replaces: 5304506949)		Appelez-nous	-
58	5304506952		Insulation, Bake Element, Lower				$ 77.26
59	139027600		Duct, Cooling Fan, Upper				$ 85.76
66	5304523477		Element, Broil, 6 Pass, 3400w   (Replaces: 139028200)				$ 235.85
67	140010667149		Element, Hidden Bake, 2500w   (Replaces: 5304506946)				$ 55.23
70	139000601		Shield, Insulation, Sides, (2)				$ 72.05
71	139022000		Shield, Rear Wire, Main Back		Appelez-nous	-
80	139021101		Bracket, Support, Chassis/fan				$ 14.89
82	5304506947		Shield, Insulation, Lower		Appelez-nous	-
83	5304506951		Shield, Bake Element, Rear		Appelez-nous	-
86	318561100		Receptacle, Hinge, (2)				$ 21.23
88	5304506964		Cover, Latch Motor				$ 24.10
89	5304528835		Motor, Latch Assy., 2 Terminals   (Replaces: 139021303)			Immediately	$ 74.12
99	139005201		Bracket, Support, Side, (2)		Appelez-nous	-
108	318575615		Motor Assembly, Cooling Fan		Appelez-nous	-
119	318578506		Thermostat, Safety, 105c			Immediately	$ 58.19
127	5304538693		Tube Assembly, Vent, W/catalyst   (Replaces: 139042600)			Immediately	$ 10.03
131	139027700		Duct, Cooling Fan, Lower				$ 73.00
142	5304506953		Sheild, Air Deflector, Back		Appelez-nous	-
143	318172904		Support, Wire		Appelez-nous	-
185	318531800		Spacer, Oven Shield, (2)				$ 12.76
264	139003501		Trim, Vent, Black, Front				$ 36.20
58A	139001701		Insulation, Oven Wrapper, 27", Top & Sides		Appelez-nous	-
58C	5304506954		Insulation, Oven, Back		Appelez-nous	-
58D	5304506965		Insulation, Bake Element, Front		Appelez-nous	-
58E	5304506966		Insulation, Bake Element, Side		Appelez-nous	-
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	5303289910		Screw, Truss Sqdr, 8a X 1", 62*				$ 5.67
NI	5304517329		Harness, Wiring, Speed Sensor				$ 42.47
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
NIA	807597603		Screw, Self Tapping, 8-18 X 11/32, (4)				$ 9.22
NIA	318579001		Bracket, Wire				$ 11.08
NIA	318946500		Bulb, Halogen, G9, 25w, 120v			Immediately	$ 60.44
NIA	5304518444		Harness, Wiring, Mdl Upper Oven		Appelez-nous	-
NIB	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
