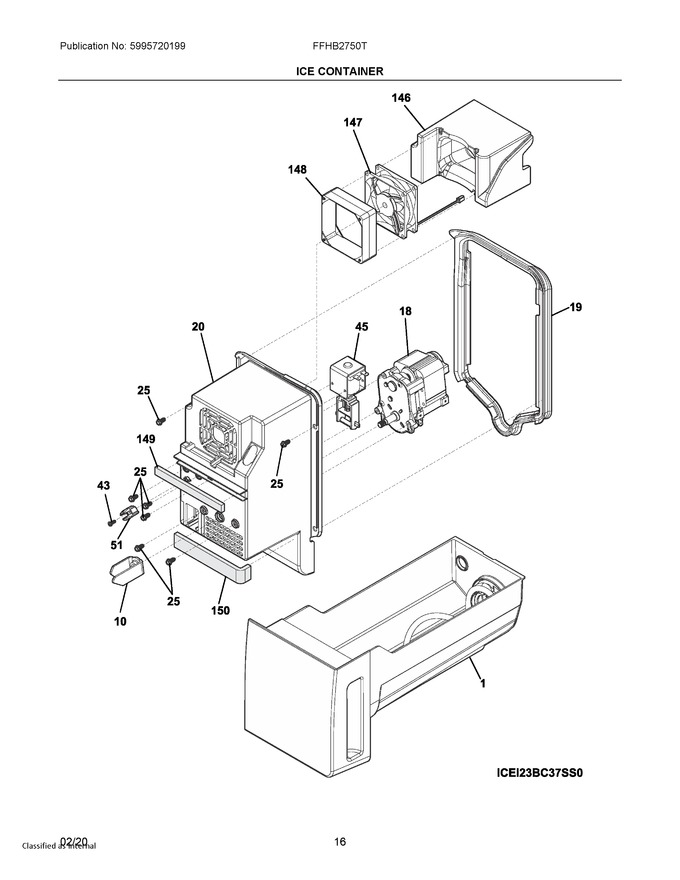

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 242093006 | Ice Container Assy, W/moving Parts |
|
$ 244.52 | |||||
| 10 | 241829001 | Bar-drive |
|
$ 58.55 | |||||
| 18 | 241816602 | Motor-auger |
|
Immediately | $ 154.76 | ||||
| 19 | 5304508066 | Gasket, Air Handler |
|
$ 45.73 | |||||
| 20 | 5304508036 | Housing, Air Handler |
|
$ 92.53 | |||||
| 25 | 240555002 | Screw-#8-32 X 3/8 |
|
Immediately | $ 13.46 | ||||
| 43 | 241641502 | Screw, Hilo Phil Pn, 8-18 X 3/8 |
|
$ 8.51 | |||||
| 45 | 241675704 | Solenoid Assy, 115v (Replaces: 241675701) |
|
Immediately | $ 65.71 | ||||
| 51 | 242095501 | Pin-anti Twist Bkt Gen Ii Im |
|
Immediately | $ 20.56 | ||||
| 146 | 5304508072 | Support, Fan |
|
$ 47.78 | |||||
| 147 | 5304493604 | Fan Assembly, Motor, With Blade (Replaces: 242119401) |
|
Immediately | $ 90.55 | ||||
| 148 | 5304508063 | Grommet, Fan |
|
Immediately | $ 15.92 | ||||
| 149 | 242095415 | Gasket |
|
Immediately | $ 10.85 | ||||
| 150 | 242095423 | Gasket |
|
Immediately | $ 21.06 | ||||
| NIA | 5304521762 | Harness, Wiring, Air Handler, W/evap Thrmistr (Replaces: 5304508052) |
|
$ 96.72 |
