SELECT A DIAGRAM

01 - Cover Sheet


02 - Cook Top

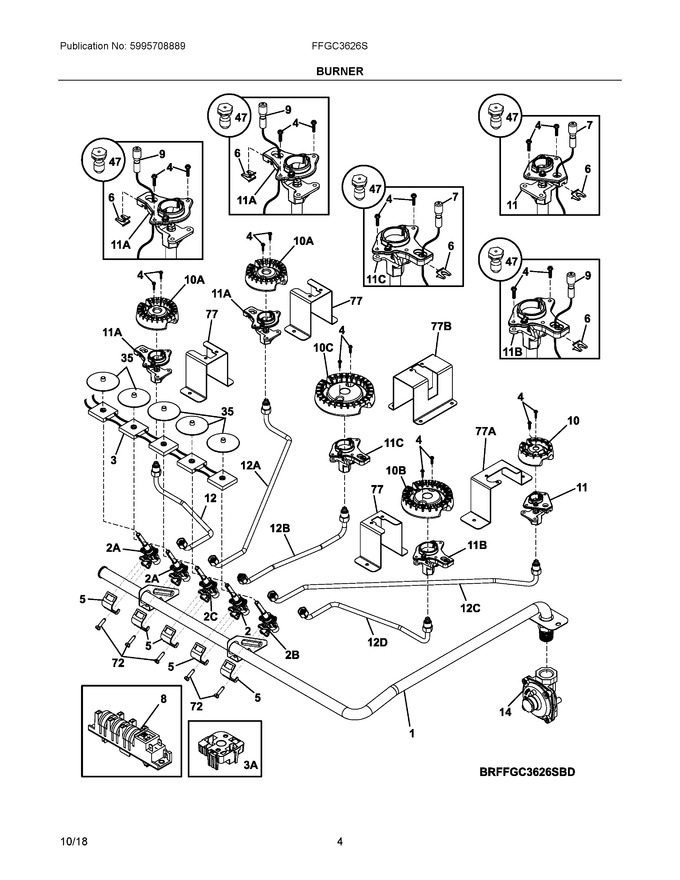

03 - Burner


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304519945		Manifold Pipe		Appelez-nous	-
2	5304505693		Valve, Saddle, 680 Btu, Orange Stem				$ 80.85
3	305595107		Switch Assembly, Ignitor, W/harness				$ 97.07
4	316240600		Screw, Hex Wash, 6-32 X .485   (Replaces: 5304472956)			Immediately	$ 12.13
5	357733402		Bracket, Valve Fixing				$ 9.66
6	5304538490		Spring Clip, Ignitor   (Replaces: 5304516455)				$ 4.08
7	5304516453		Ignitor, Top Burner, 380mm, W/wiring				$ 20.03
8	5304537114		Module, Spark, 6 Outputs   (Replaces: 5304505696)			Immediately	$ 47.88
9	5304516454		Ignitor, Top Burner, 520mm, W/wiring				$ 22.45
10	316438200		Burner, Sealed, 5k			Immediately	$ 56.70
11	5304516449		Holder, Orifice/ignitor, 5k, W/nat Orifice				$ 43.99
12	5304498881		Tube, Burner, Lh Front		Appelez-nous	-
14	5304519943		Regulator, Pressure				$ 129.93
35	807164301		Bushing, Insulating		Appelez-nous	-
47	5304504841		Lp Kit, Gas Conversion		Appelez-nous	-
72	305517500		Screw, Hex Zc, M4 X 16, (8)				$ 6.82
77	5304498799		Bracket, Ignitor/orifice, Mounting				$ 18.43
10A	316558300		Burner, Sealed, 9.5k			Immediately	$ 52.45
10B	316438600		Burner, Sealed, 14k			Immediately	$ 79.80
10C	316438400		Burner, Sealed, 18.2k			Immediately	$ 83.42
11A	5304516450		Holder, Orifice/ignitor, 9.5k, W/nat Orifice			Immediately	$ 43.99
11B	5304516451		Holder, Orifice/ignitor, 12k, W/nat Orifice				$ 48.65
11C	5304516452		Holder, Orifice/ignitor, 14k, W/nat Orifice				$ 54.15
12A	5304498882		Tube, Burner, Lh Rear		Appelez-nous	-
12B	5304498883		Tube, Burner, Center		Appelez-nous	-
12C	5304498884		Tube, Burner, Rh Front		Appelez-nous	-
12D	5304498885		Tube, Burner, Rh Rear		Appelez-nous	-
2A	5304505690		Valve, Saddle, 850 Btu, Green Stem			Immediately	$ 69.77
2B	5304505691		Valve, Saddle, 1125 Btu, Blue Stem			Immediately	$ 69.01
2C	5304505692		Valve, Saddle, 1800 Btu, Red Stem				$ 71.29
3A	5304505694		Adapter, Switch Mtg.				$ 15.92
77A	5304498800		Bracket, Ignitor/orifice, 5k Burner, Mounting		Appelez-nous	-
77B	5304498888		Bracket, Ignitor/orifice, Center Burner, Mounting				$ 19.85
NI	305338602		Screw		Appelez-nous	-
NI	305309701		Screw, Phil, 4.2 X 6.5, (20)				$ 5.67
NIA	5304516456		Wire, Grounding		Appelez-nous	-
NIA	5304519944		Cap, Regulator, Red		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
