View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Control Panel
03 - Door
04 - Electrical Parts
05 - Wash System

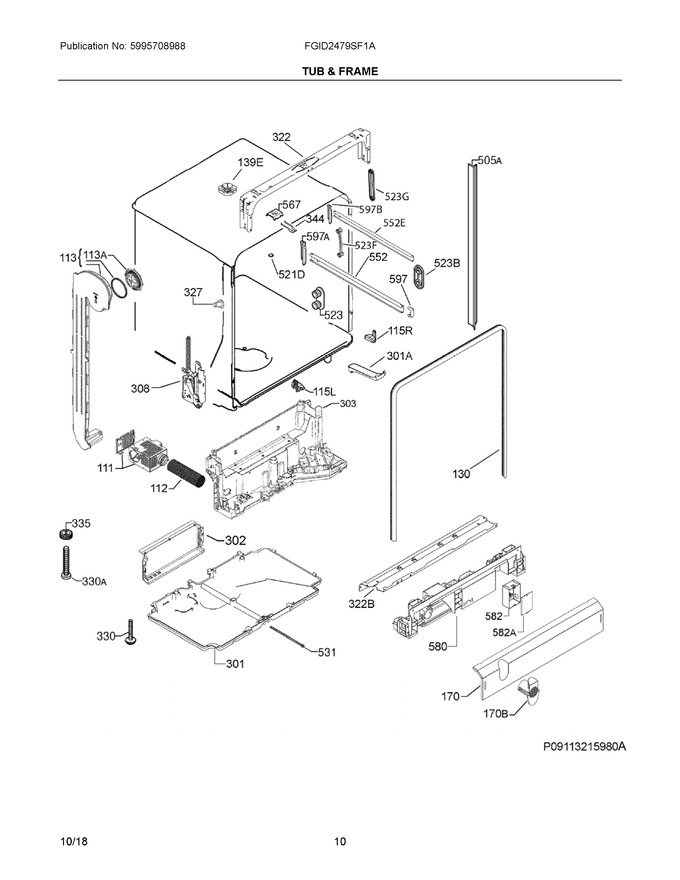

06 - Tub & Frame
07 - Racks
08 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 111 | 5304509259 | Housing Assembly, Ventilator, Complete |
|
$ 56.15 | |||||
| 112 | A05660505 | Hose, Air Channel |
|
$ 29.16 | |||||
| 113 | 405537600 | Air Duct, Assembly, Drying |
|
$ 110.22 | |||||
| 130 | 117158011 | Seal, Door |
|
Immediately | $ 50.61 | ||||
| 170 | 405537597 | Insulation Kit, Kickplate |
|
$ 117.64 | |||||
| 301 | 807104203 | Tray, Bottom |
|
$ 204.17 | |||||
| 302 | A00075002 | Cover, Electronics |
|
$ 98.33 | |||||
| 303 | A01868606 | Base, Lower, Rear |
|
$ 112.78 | |||||
| 308 | 405539931 | Hinge Assembly, Kit, Rh And Lh |
|
Immediately | $ 161.79 | ||||
| 322 | A00166801 | Crossbar, Front, Zinc, Top |
|
$ 208.19 | |||||
| 327 | 117427700 | Clip, Rivet |
|
$ 58.82 | |||||
| 330 | 117368700 | Foot, Adjustable, Front |
|
$ 111.83 | |||||
| 335 | 152714200 | Cog, Wheel |
|
$ 58.12 | |||||
| 344 | 152234405 | Latch |
|
$ 119.17 | |||||
| 523 | 405526079 | Roller Assembly, Kit, Tub |
|
$ 122.00 | |||||
| 531 | A00021003 | Screw, Foot Adjusting, Central |
|
$ 138.56 | |||||
| 552 | A00212701 | Rail, Upper Rack |
|
$ 128.51 | |||||
| 567 | 152323603 | Bracket, Latch |
|
$ 57.56 | |||||
| 580 | A04472905 | Cover, Bottom, Front |
|
$ 87.18 | |||||
| 582 | A03987801 | Box, Junction |
|
$ 31.10 | |||||
| 597 | 152047941 | Stop, Rack Rail, Dark Grey, Front |
|
Immediately | $ 18.43 | ||||
| 113A | A06525801 | Outlet, Ventilation, Dark Grey, Tub |
|
Immediately | $ 21.74 | ||||
| 115L | A11462601 | Bridge, Lower Basket, Lh |
|
$ 19.52 | |||||
| 115R | A11462602 | Bridge, Lower Basket, Rh |
|
$ 19.71 | |||||
| 139E | 807240301 | Nut, Spray Arm, Upper |
|
Immediately | $ 63.79 | ||||
| 170B | A05936001 | Outlet, Ventilation, Kickplate |
|
$ 33.35 | |||||
| 301A | 405513837 | Overflow Hose, Kit |
|
$ 101.35 | |||||
| 322B | 117156109 | Cross Piece, Front, Bottom |
|
$ 59.28 | |||||
| 330A | 117363200 | Foot, Adjustable, Central |
|
$ 104.18 | |||||
| 505A | 808470401 | Trim, Side, L=648mm |
|
Immediately | $ 35.53 | ||||
| 521D | 152657610 | Plug, Latch Hole |
|
$ 51.74 | |||||
| 523B | 152122010 | Holder, Roller, Stiffening |
|
$ 58.88 | |||||
| 523F | 405526164 | Roller Kit, Tub, Top Lh-rh |
|
$ 76.23 | |||||
| 523G | A00204701 | Holder, Stiffening, Top, Roller |
|
- | |||||
| 552E | 807085002 | Rail, Top Rack (Replaces: 807085001) |
|
$ 39.18 | |||||
| 582A | A03337103 | Cover, Junction Box |
|
$ 14.15 | |||||
| 597A | 646123406 | Stop, Rack Rail, Dark Grey, Rear |
|
$ 82.93 | |||||
| 597B | 807070701 | Stop, Rack, Rear, Top Rack |
|
$ 78.67 | |||||
| NI | 405531515 | Mounting Kit, Built-in, W/screws, & Brackets |
|
Immediately | $ 91.39 | ||||
| NI | 405530687 | Screw, Holder, (8), & Roller |
|
$ 132.40 |
