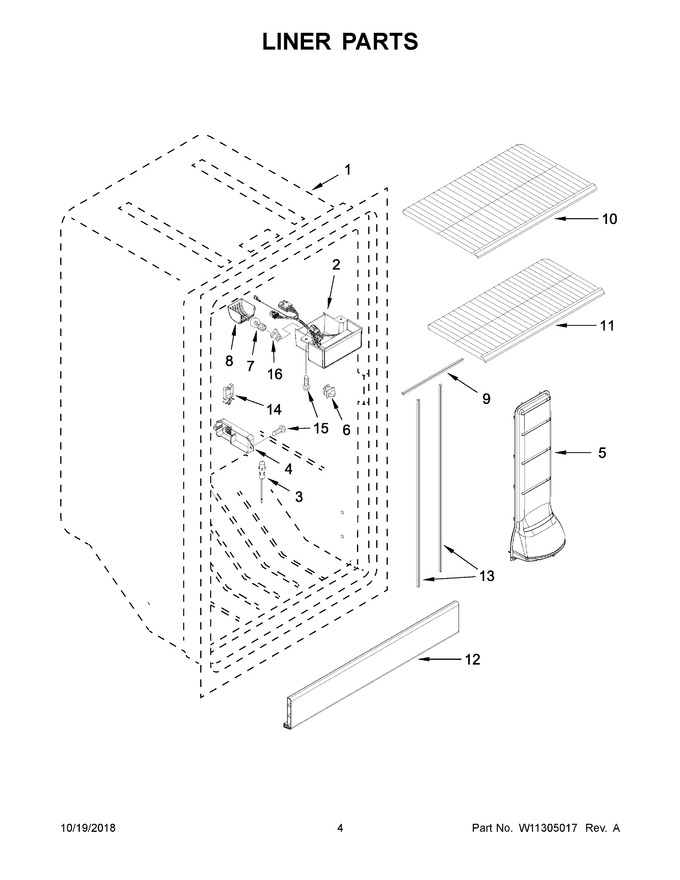

03 - Liner Parts
04 - Door Parts
05 - Unit Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | W11496882 | Control Assembly (Replaces: W11221330) |
|
Immediately | $ 155.30 | ||||
| 3 | WPW10384183 | Thermistor (Replaces: W10384183) |
|
Immediately | $ 101.55 | ||||
| 4 | W10608692 | Cover, Thermistor |
|
$ 26.77 | |||||
| 5 | W10574583 | Tower, Air |
|
$ 115.79 | |||||
| 6 | W10755325 | Switch, Light |
|
Immediately | $ 35.29 | ||||
| 7 | W11679940 | Bulb, Light (Replaces: 2311792) |
|
Immediately | $ 10.17 | ||||
| 8 | W10569269 | Lens, Control Box |
|
$ 74.13 | |||||
| 9 | WPW10574368 | Gasket, Air Tower (horizontal) (Replaces: W10574564) |
|
$ 7.50 | |||||
| 10 | W10836976 | Wire Shelf, Deep (Replaces: W10569280) |
|
Immediately | $ 130.50 | ||||
| 11 | W10838567 | Wire Shelf, Shallow (Replaces: W10569281) |
|
Immediately | $ 71.69 | ||||
| 12 | W10581588 | Trim, Door |
|
$ 76.98 | |||||
| 13 | WPW10574368 | Gasket, Air Tower (vertical) (Replaces: W10574368) |
|
$ 7.50 | |||||
| 14 | W11233642 | Clip (Replaces: 2223913) |
|
- | |||||
| 15 | WPW10142283 | Screw (Replaces: 3-80732-007) |
|
$ 8.86 | |||||
| 16 | WPW10119935 | Socket, Light (Replaces: 2155597) |
|
$ 90.99 |
