SELECT A DIAGRAM

01 - Cover Sheet


02 - Freezer Drawer, Baskets


03 - Fresh Food Door


04 - Cabinet

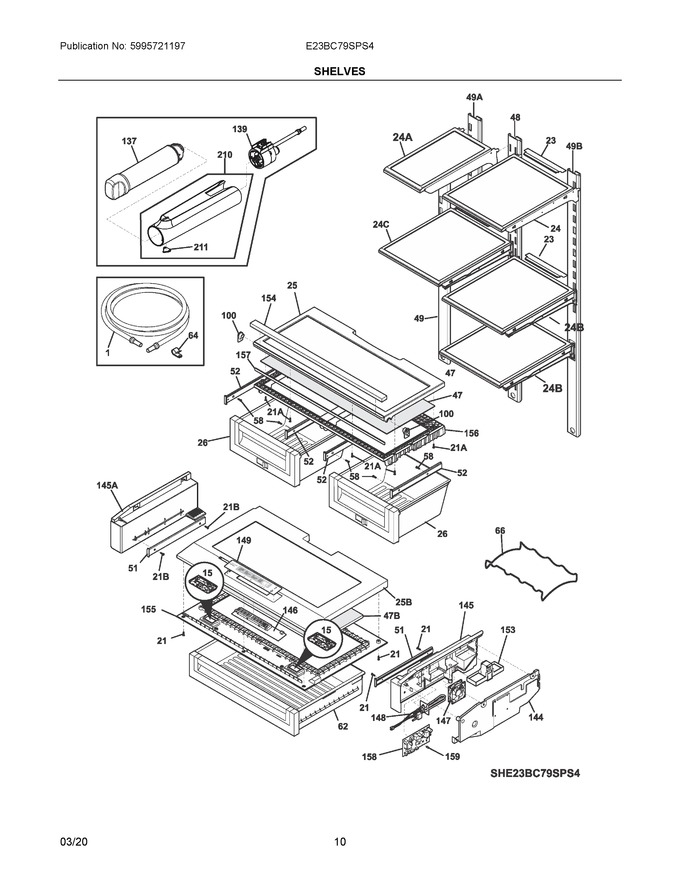

05 - Shelves


06 - Cooling System


07 - Controls & Ice Dispenser


08 - Ice Container


09 - Ice Maker


10 - Wiring Diagram


11 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	242220119		Tube-water, 97.5", Natural, Filter Base To, Secondary Valve			Immediately	$ 30.47
15	5304513664		S/a Pur-led Light, Vega 6500k				$ 42.47
21	241953902		Screw, Quad Hilo, #8-18 X 0.380			Immediately	$ 17.11
23	5304508193		Deflector, Air, Shelf				$ 11.34
24	5304508179		Shelf, Lift-off, 1/2 Width				$ 169.39
25	241802205		Frame-crisper Cover, Upper				$ 119.07
26	241772808		Pan-crisper				$ 269.22
47	241768802		Glass-crisper Frame				$ 77.36
48	242122101		Channel-shelf Mtg, Center				$ 80.09
49	5304508196		Channel, Shelf Mtg., Lh Side		Appelez-nous	-
51	241816101		Slide-deli				$ 152.38
52	241769002		Slide-crisper Cover				$ 119.78
58	241941202		Screw, 8-18 X 3/8				$ 15.17
62	241827206		Pan-deli				$ 248.49
64	240396801		Clamp, Tube/wiring, Nylon, Black/natural				$ 19.13
66	241748901		Rack-wine				$ 77.97
100	241768601		Support-crspr Cover				$ 19.13
137	EWF02C		Filter Assembly, Puresource U-ii, W/cap   (Replaces: 807946704)			Immediately	$ 75.59
139	5304522623		Manifold, Water Filter, 93.5", W/brown Tube, Filter Base To, Primary Valve   (Replaces: 807931801)			Immediately	$ 64.53
144	241803901		Cover-deli Air Control		Appelez-nous	-
145	241803803		Housing-deli Air Control				$ 126.21
146	241958405		Control-electronic, Ptd   (Replaces: 241958403)				$ 143.18
147	241825704		Fan Assembly, Motor, With Blade				$ 289.58
148	241782001		Heater-ptd, 115 V				$ 194.90
149	242025902		Overlay, Electronic, Membrane Switch				$ 184.28
153	241775301		Motor-damper				$ 227.24
154	241879902		Trim-crisper Cover				$ 39.44
155	241803403		Frame-deli Cover, Lower				$ 148.13
156	241872006		Frame-crisper Cover, Lower				$ 119.78
157	241872201		Beam Support				$ 53.85
158	241955004		Board-main Power, Ptd				$ 245.23
159	241815401		Cap, Pcba Hold Down		Appelez-nous	-
210	5303918723		Housing, Water Filter, W/plug & Pad			Immediately	$ 26.23
211	807932201		Plug, Filter Housing		Appelez-nous	-
145A	5304508170		Support, Rail, Lh				$ 96.32
21A	5304453707		Screw, Quad Hilo, #8-18 X 0.50, (2)   (Replaces: 241953901)			Immediately	$ 15.92
21B	241953902		Screw, Quad Hilo, #8-18 X 0.25   (Replaces: 241953907)			Immediately	$ 17.11
24A	5304508177		Shelf, Lift-off, 1/4 Width				$ 146.01
24B	5304508174		Bracket Assembly, Lift-off Shelf, 1/2 Width				$ 243.43
24C	5304508175		Bracket Assembly, Lift-off Shelf, 1/4 Width				$ 204.84
25B	5303918487		Cover-pan, Ptd, Cover Kit				$ 185.18
47B	241967401		Glass, 2 Pane Insulatd				$ 225.39
49A	5304531311		Channel-shelf Mtg, Center, Icemaker Shelf   (Replaces: 242122001)		Appelez-nous	-
49B	242122302		Channel-shelf Mtg, Side, Rh				$ 73.00
NI	807332497		Label-energy Doe		Appelez-nous	-
NI	5304455650		Screw, Hex Washer Head, 8-15a X 0.625, Low Profile				$ 14.18
NI	240451503		Screw, Ind Hex Wshr Hd, 8-32 X 0.375, Trilobe				$ 3.79
NIA	241936201		Damper-rubber, Ptd Fan		Appelez-nous	-
NIA	A13402902		Bypass Assembly, No Filter, Optional Part   (Replaces: 807946702)			Immediately	$ 104.38
NIA	242130101		Clip, Retainer, Ptd Board		Appelez-nous	-
NIA	241695904		Screw, Type Ab, #10-16 X .5				$ 14.41
NIA	241835402		Harness-wiring, Mixing Valve				$ 23.39
NIA	242200102		Clip, Tubing, 90 Deg Elbow				$ 10.63
NIA	5304521780		Harness-power Ptd   (Replaces: 241822602)				$ 23.51
NIA	241500303		Screw, Hex Washer Head, 8-18ab X 1/2			Immediately	$ 4.55
NIB	5304508198		Harness, Wiring, Ptd Ui & Led, W/thermistor				$ 126.86
NIB	241862501		Harness-wiring, Ptd Main W/led				$ 47.48
NIB	242039702		Screw, Shoulder, #10-16, (2)				$ 4.26

    View Diagram in Separate Window       Print Part List
