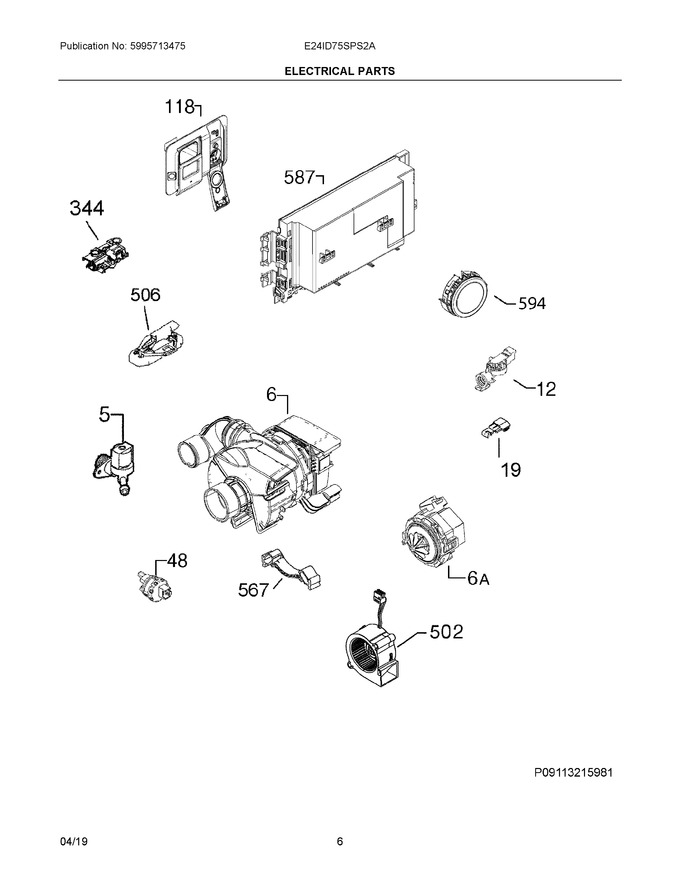

04 - Electrical Parts
05 - Wash System
06 - Tub & Frame
07 - Racks
08 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 5 | 807445905 | Valve, Fill (Replaces: 807445904) |
|
Immediately | $ 92.83 | ||||
| 6 | A00223923 | Pump Assembly, Circulation, W/heater |
|
Immediately | $ 289.13 | ||||
| 12 | A00055408 | Switch, Pressure |
|
Immediately | $ 83.50 | ||||
| 19 | 140000781132 | Lamp, Door Indicator (Replaces: 5304515442) |
|
- | |||||
| 48 | A00040106 | Sensor, Turbidity (Replaces: A00040101) |
|
Immediately | $ 62.90 | ||||
| 118 | 5304536277 | Dispenser, Detergent (Replaces: 5304517666) |
|
Immediately | $ 240.20 | ||||
| 344 | 111315040 | Door Lock, Assembly |
|
Immediately | $ 210.12 | ||||
| 502 | A05660402 | Blower Assembly, Radial |
|
Immediately | $ 142.47 | ||||
| 506 | A00056506 | Switch Assembly, Float (Replaces: A00056504) |
|
Immediately | $ 52.28 | ||||
| 567 | 117302400 | Support, Motor, Rubber |
|
- | |||||
| 587 | 5304537596 | Control Assembly, Configured, Pb100 (Replaces: 117499412) |
|
$ 283.82 | |||||
| 594 | 5304521592 | Internal Light, Led (Replaces: 807453001) |
|
$ 139.10 | |||||
| 6A | 140180051066 | Drain Pump, Assembly (Replaces: A00060401) |
|
Immediately | $ 60.71 | ||||
| NI | A04233303 | Harness, Wiring, Pcb, Main |
|
$ 139.91 | |||||
| NI | 807555203 | Harness, Wiring, Pcb, Heater |
|
Immediately | $ 116.85 | ||||
| NI | A00233431 | Harness, Wiring, Pcb, Door |
|
$ 247.34 | |||||
| NI | A02719801 | Harness, Wiring, Ui Board, Connection |
|
$ 35.05 |
