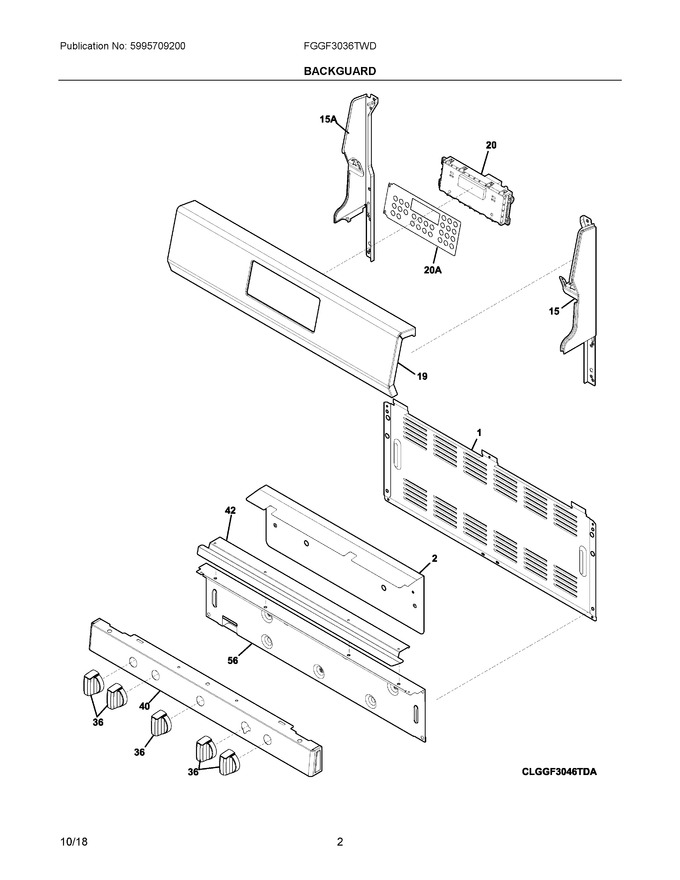

02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316281802		Shield, Backguard, Rear Wall   (Replaces: 316281801)				$ 57.64
2	5304508980		Shield, Backguard, Inner		Appelez-nous	-
15	808754505		Cap, End, White, Rh				$ 61.66
19	5304509893		Panel, Backguard, White				$ 179.18
20	5304516044		Eoc, Gas			Immediately	$ 324.84
36	5304507387		Knob, Top Valve, White				$ 21.99
40	316605361		Panel, Manifold, White				$ 93.13
42	808754602		Deflector, Backguard, Light Grey				$ 65.92
56	316230708		Shield, Backguard, Inner				$ 61.66
15A	808754506		Cap, End, White, Lh				$ 65.98
20A	316419379		Overlay, Clock, White, Es334isb				$ 23.86
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316519700		Screw, Cup Pt, 8-18 X 0.375, Chrome   (Replaces: 316021108)				$ 10.02
NI	316089500		Screw, 10-16 X .486				$ 13.46
