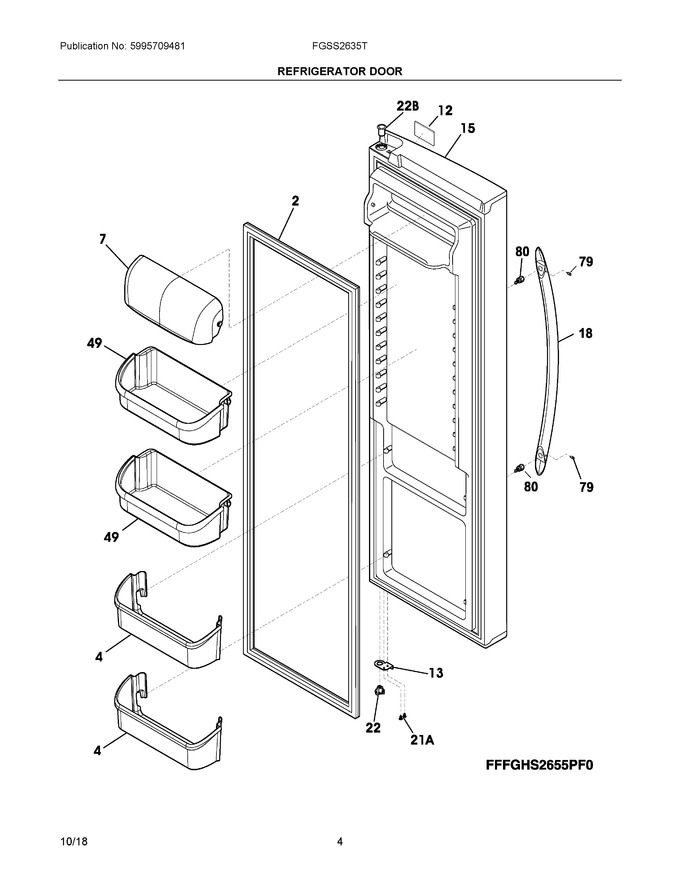

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 241786005 | Refrigerator Door Gasket, Grey, Magnetic |
|
Immediately | $ 225.62 | ||||
| 4 | 242126602 | Bin-door, Pseudo, Bottom |
|
Immediately | $ 49.90 | ||||
| 7 | 240326203 | Door-dairy |
|
$ 40.37 | |||||
| 12 | 5304512152 | Nameplate, Black |
|
- | |||||
| 13 | 241990201 | Door Stop, Black, Ref |
|
$ 21.27 | |||||
| 15 | 807460166 | Door-refr, Black, Complete Assy |
|
- | |||||
| 18 | 241930103 | Handle-door, Black |
|
$ 213.98 | |||||
| 22 | 241990301 | Bearing-hinge, Gray |
|
$ 7.09 | |||||
| 49 | 240356402 | Bin-door, Gallon |
|
Immediately | $ 106.83 | ||||
| 79 | 218755405 | Screw-set, 10-32 X 0.375 (Replaces: 218755408) |
|
Immediately | $ 20.56 | ||||
| 80 | 218755504 | Screw, Shoulder, #10-ab, Handle Mounting |
|
Immediately | $ 18.60 | ||||
| 21A | 240442708 | Screw-#10-32 X 3/4, Zinc (Replaces: 240442706) |
|
$ 8.34 | |||||
| 22B | 241760404 | Bearing, Hinge, Top |
|
$ 12.76 | |||||
| NI | 241601002 | Wrench, Allen |
|
- |
