SELECT A DIAGRAM

01 - Cover Sheet

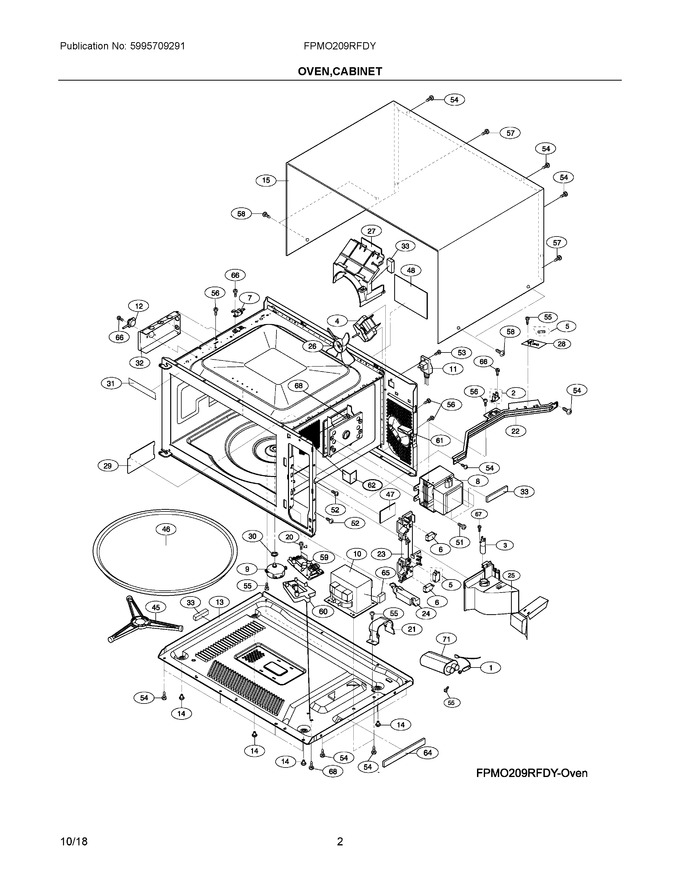

02 - Oven,cabinet


03 - Control Panel,door,misc.


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304493150		Rectifier Assembly, Hv, W/diode				$ 26.94
2	5303319550		Fuse, Magnetron				$ 117.23
3	5304500304		Lamp Assy, With Socket   (Replaces: 5304440779)				$ 63.79
4	5304493152		Motor, Cooling Fan				$ 87.43
5	5304479020		Switch, Monitor, W/ceramic Fuse		Appelez-nous	-
6	5304493153		Switch, Interlock, Door Sensor			Immediately	$ 83.38
7	5304440780		Fuse, Cavity Temp, 20 Amp, 250 V				$ 85.76
8	5304521745		Magnetron   (Replaces: 5304440781)				$ 189.05
9	5304440021		Motor, Turntable				$ 82.64
10	5304479021		Transformer, Power		Appelez-nous	-
11	5304440784		Power Cord, Electric				$ 120.49
12	5304516266		Sensor Assembly, Ah		Appelez-nous	-
13	5304478938		Base, Unit Chassis				$ 147.47
14	5304478939		Foot, Cabinet Support				$ 19.06
15	5304478940		Cabinet, Outer Casing, Black				$ 320.30
20	5304456930		Screw, 3 Mm X 6 Mm		Appelez-nous	-
21	5304478941		Retainer, Capacitor Strap		Appelez-nous	-
22	5304478942		Bracket, Chassis Support		Appelez-nous	-
23	5304503439		Latch Hook			Immediately	$ 60.62
24	5304485407		Lever, Door Release   (Replaces: 5304464899)				$ 63.36
25	5304478956		Duct, Magnetron		Appelez-nous	-
26	5304493155		Fan Blade, Cooling Fan				$ 16.30
27	5304493156		Duct, Cooling Fan		Appelez-nous	-
28	5304507217		Filter, Noise, Electronic				$ 97.83
29	5304478947		Cover, Waveguide		Appelez-nous	-
30	5304467718		Bushing, Motor Shaft, Turntable				$ 19.14
31	5304503484		Label, Menu		Appelez-nous	-
32	5304478948		Duct, Humidity Sensor		Appelez-nous	-
33	5304493207		Cushion, Magnetron Pad		Appelez-nous	-
45	5304467717		Support Assy, Turntable, Roller				$ 122.18
46	5304529482		Tray, Turntable, Glass   (Replaces: 5304440868)				$ 108.44
47	5304467771		Label, Caution-monitor		Appelez-nous	-
48	5304467770		Label, Caution-dhhs		Appelez-nous	-
51	5304467780		Screw, 4 Mm X 8 Mm, Tap Tight				$ 13.46
52	5303319641		Screw, (2)				$ 12.76
53	5304462315		Screw, 4 Mm X 12 Mm, Ground		Appelez-nous	-
54	5304502863		Screw, 4 Mm X 8 Mm, Chromium   (Replaces: 5304451552)				$ 10.85
55	5304451550		Screw, 4 Mm X 8 Mm		Appelez-nous	-
56	5304450253		Screw, 4 Mm X 8 Mm				$ 14.89
57	5304440873		Screw, Torx, Tamper Proof				$ 11.34
58	5304467777		Screw, 4 Mm X 8 Mm, Black				$ 16.30
59	5304507220		Power Unit, Ac/dc Switching				$ 198.90
60	5304507222		Holder, Power Unit		Appelez-nous	-
61	5304493208		Cushion, Fan Motor		Appelez-nous	-
62	5304493209		Cushion, Cavity, Control Panel		Appelez-nous	-
64	5304493206		Cushion, Base Plate		Appelez-nous	-
65	5304503485		Cushion, Transformer Pad		Appelez-nous	-
66	5304467781		Screw, 3 Mm X 6 Mm				$ 9.87
67	5304474833		Screw, 4 Mm X 10 Mm, White		Appelez-nous	-
68	5304505546		Screw, 4mm X 10mm		Appelez-nous	-
71	5304487566		Capacitor, High Voltage			Immediately	$ 122.62

    View Diagram in Separate Window       Print Part List
