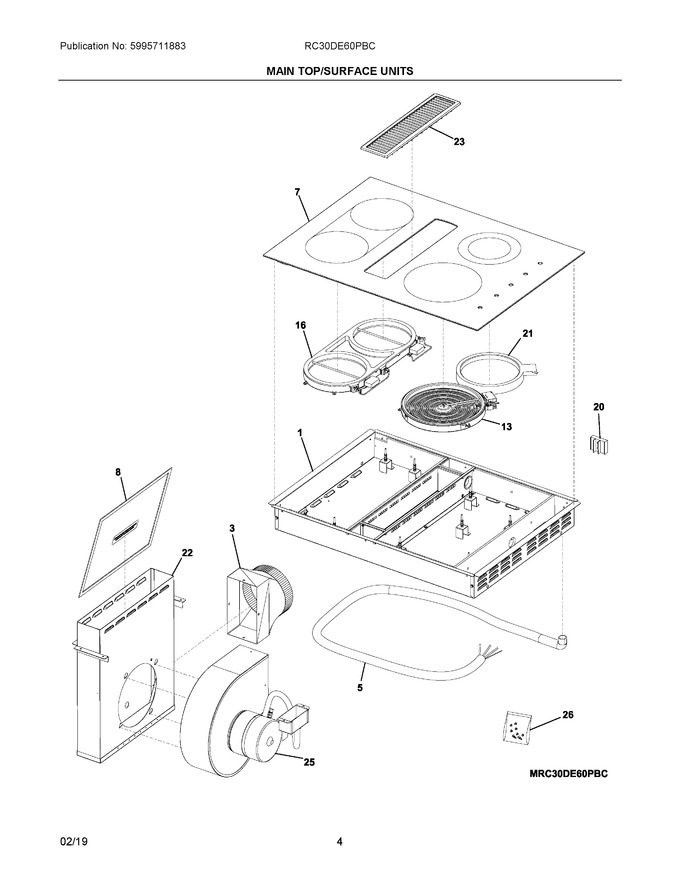

03 - Main Top/surface Units
04 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304485470 | Box, Burner, 30 |
|
- | |||||
| 3 | 5304485473 | Transition, Exhaust |
|
- | |||||
| 5 | 5304485475 | Conduit Assembly, Power Supply |
|
- | |||||
| 7 | 5304519992 | Main Top Assembly, Glass, Black |
|
- | |||||
| 8 | 5304485479 | Filter, Blower Air |
|
- | |||||
| 13 | 8583165300010 | Element, Surface, 9", 3200w, Turbo Boil (Replaces: 316530000) |
|
Immediately | $ 76.06 | ||||
| 16 | 318258201 | Element, Bridge, 1800/2600 (Replaces: 318178200) |
|
Immediately | $ 480.54 | ||||
| 20 | 5304485482 | Block, Terminal |
|
- | |||||
| 21 | 5304485483 | Element, Dual, 1800/800 Watt, Radiant |
|
$ 388.48 | |||||
| 22 | 5304485484 | Plenum Assembly, Blower |
|
- | |||||
| 23 | 5304491865 | Grate, Vent, W/packaging |
|
- | |||||
| 25 | 5304485487 | Blower Assembly |
|
$ 1,233.11 | |||||
| 26 | 5304491866 | Hardware Assembly, Cooktop Mtg. |
|
- | |||||
| NI | 5304485486 | Harness, Wiring, Main |
|
- | |||||
| NI | 5304519991 | Harness, Wiring, Main |
|
- |
