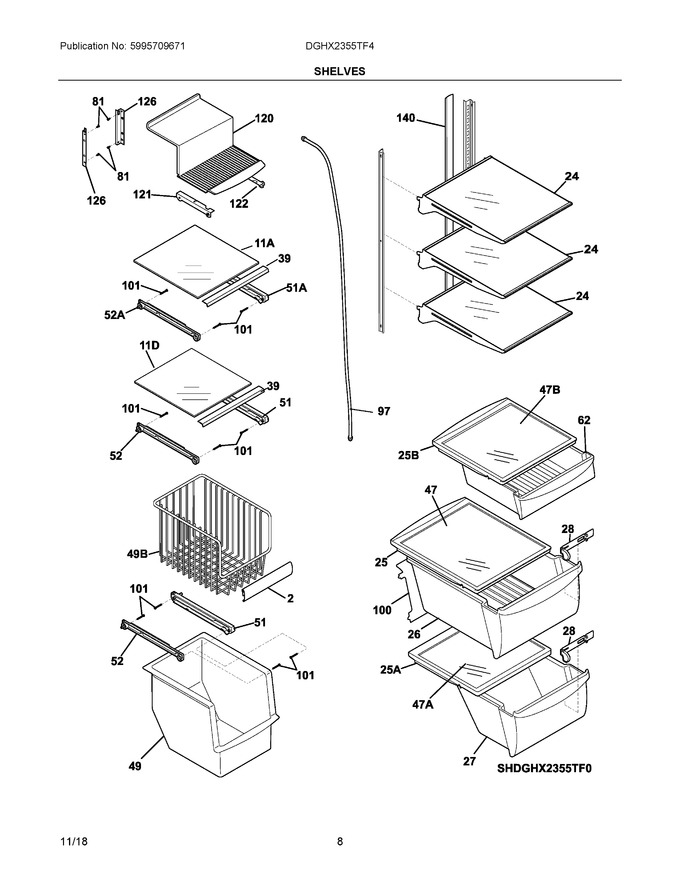

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 241510612 | Trim-basket |
|
- | |||||
| 24 | 5304512784 | Shelf Assembly, Cantilever, Glass, W/trim |
|
$ 111.48 | |||||
| 25 | 241974201 | Cover-crisper Pan, Upper |
|
$ 94.98 | |||||
| 26 | 240354723 | Pan-crisper, Upper |
|
Immediately | $ 164.31 | ||||
| 27 | 240354805 | Pan-crisper, Lower (Replaces: 240354826) |
|
$ 167.69 | |||||
| 28 | 240351101 | Control-humidity |
|
Immediately | $ 43.95 | ||||
| 39 | 240367609 | Trim-shelf, Front |
|
- | |||||
| 47 | 240350613 | Insert-pan Cover, Glass (Replaces: 241992910) |
|
$ 123.62 | |||||
| 49 | 240564301 | Basket-sliding |
|
$ 131.97 | |||||
| 51 | 240343002 | Hanger-basket, Rh |
|
$ 65.22 | |||||
| 52 | 240343102 | Hanger-basket, Lh |
|
$ 69.77 | |||||
| 62 | 241974401 | Pan-meat |
|
Immediately | $ 149.50 | ||||
| 81 | 5304455650 | Screw, Hex Washer Head, 8-15a X 0.625, Low Profile |
|
$ 14.18 | |||||
| 97 | 242220208 | Tube-water Inlet, .315 - 97.50", Natural |
|
Immediately | $ 43.24 | ||||
| 100 | 240326303 | Cover-water Tank |
|
$ 61.28 | |||||
| 101 | 218493101 | Screw, Hex Washer Head, 8-18ab X 1-3/4 |
|
$ 13.46 | |||||
| 120 | 241691801 | Shelf-ice Cream |
|
$ 260.87 | |||||
| 121 | 241561001 | Rail-ice Cream Shelf, Lh |
|
$ 101.63 | |||||
| 122 | 241561101 | Rail-ice Cream Shelf, Rh |
|
$ 78.87 | |||||
| 126 | 241674401 | Channel, Auger Mtg, Lh |
|
$ 47.48 | |||||
| 140 | 241812502 | Channel, Wtr Tube Cover |
|
$ 76.97 | |||||
| 11A | 241992913 | Shelf-freezer, Glass, Upper |
|
$ 69.46 | |||||
| 11D | 241992914 | Shelf-freezer, Glass, Lower |
|
$ 51.74 | |||||
| 126A | 241674402 | Channel, Auger Mtg, Rh |
|
$ 43.24 | |||||
| 25A | 241974301 | Cover-crisper Pan, Lower |
|
$ 88.46 | |||||
| 25B | 241973101 | Cover-meat Pan |
|
Immediately | $ 87.77 | ||||
| 47A | 240350614 | Insert-pan Cover, Glass |
|
$ 145.60 | |||||
| 47B | 241992909 | Insert-pan Cover, Glass |
|
$ 117.66 | |||||
| 49B | 240530503 | Basket-sliding, Upper, Full |
|
$ 220.14 | |||||
| 51A | 240395502 | Hanger-basket, Rh |
|
$ 73.00 | |||||
| 52A | 240395602 | Hanger-basket, Lh |
|
$ 61.66 | |||||
| NI | 241868101 | Air Guide |
|
- | |||||
| NI | 240349801 | Clip-slide, Pan |
|
$ 20.48 | |||||
| NI | 240362101 | Clip-slide, Cover |
|
$ 47.03 | |||||
| NI | 5304513036 | Label, Energy Guide |
|
- | |||||
| NIA | 241781601 | Seal-return Air |
|
$ 9.10 | |||||
| NIA | 241806601 | Connector-water, Straight, 5/16 To 5/16 (Replaces: 242103001) |
|
Immediately | $ 70.56 | ||||
| NIB | 242200102 | Clip, Tubing, 90 Deg Elbow |
|
$ 10.63 |
