SELECT A DIAGRAM

01 - Cover Sheet

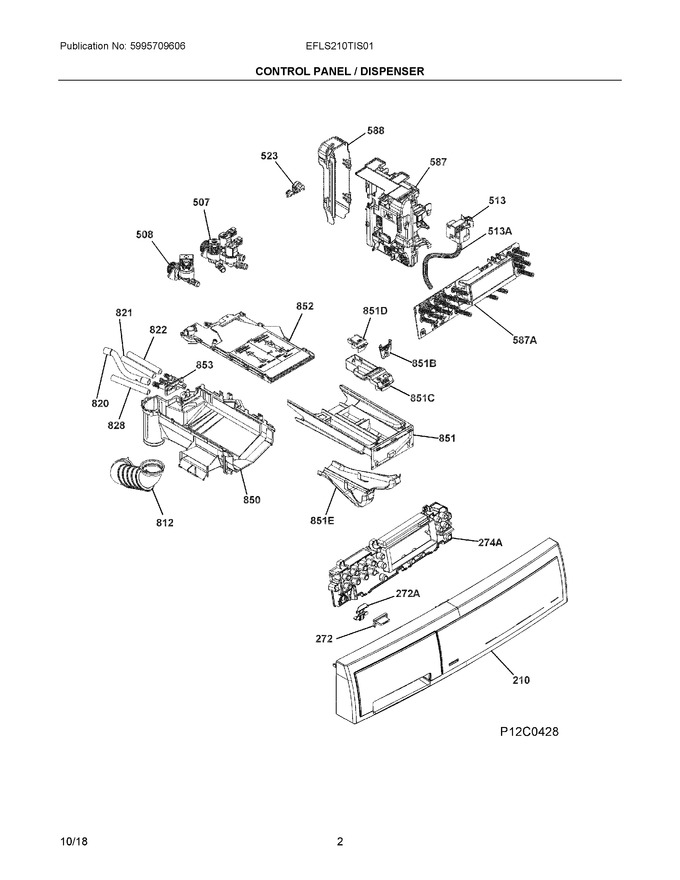

02 - Control Panel / Dispenser


03 - Cabinet / Top / Door


04 - Motor / Tub / Drain


05 - Wiring Diagram


06 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
210	A10118701		Panel, Control Console, Silver, W/drw Handle				$ 607.93
272	136658512		Button, Rect On/off, Silver		Appelez-nous	-
507	132518842		Valve, Electric 3 Ways			Immediately	$ 124.65
508	132744701		Valve, Electric, 1 Way			Immediately	$ 80.51
513	379221604		Switch, Pressure   (Replaces: 132819501)				$ 48.34
523	A02006501		Duct, Power Cable, Ul		Appelez-nous	-
587	5304519998		Pc Board, Control, Ewx11831, Main, Configured				$ 282.79
588	807021101		Protection, Elec Board, Connection		Appelez-nous	-
812	405537913		Hose Kit, Detergent Fill, W/clamps				$ 37.59
820	405536798		Tube Kit, Electric Valve, Ev/wd G33 D=12		Appelez-nous	-
821	405536797		Tube Kit, Electric Valve, D=10mm/l=152mm				$ 29.65
822	405536796		Tube Kit, Electric Valve, D=10mm/l=125mm				$ 27.64
828	132502480		Tube, Elec Valve, D=10 L=165, Container Cup		Appelez-nous	-
850	132640843		Dispenser, Detergent				$ 234.70
851	132507511		Drawer, Detergent				$ 253.87
852	132507112		Distributor, Water, Asmy Hot				$ 112.31
853	132502111		Distributor, Water, Back, Pipe Union				$ 177.08
272A	136658601		Spring, Button, On/off				$ 36.87
274A	136659600		Diffuser, Support, Luminous Diode				$ 101.12
513A	132642371		Tube, Pressure Switch   (Replaces: 132642330)				$ 43.67
587A	A10066602		Pc Board, Control, User Interface, Assembly				$ 501.80
851B	132767801		Flap, Partition, Detergent Drawr   (Replaces: 132767800)				$ 7.23
851C	809169901		Syphon, Additives, Det Drawer				$ 90.37
851D	809169801		Syphon, Liquid Det, Detergent Drwr				$ 66.51
851E	132507601		Conveyor, Bottom, Det Dwr				$ 128.68
NI	A01245701		Harness, Hot Water Inlet		Appelez-nous	-
NI	A01245801		Harness, Pressure Switch		Appelez-nous	-
NI	A01245901		Harness, Invert, 1340mm				$ 167.27
NI	A01246101		Harness, Drain Pump				$ 199.87
NI	A01246201		Harness, Inversion, 1180mm				$ 172.94
NI	A01246301		Harness, Door Safety, Interlock		Appelez-nous	-
NI	A01246501		Harness, Ui Main Board				$ 187.11
NI	A01246601		Harness, Motor, Inverter				$ 166.93
NI	105117480		Clamp, Hose		Appelez-nous	-
NI	132315900		Clamp, Hose, D 20, 5		Appelez-nous	-
NI	132315920		Clamp, Hose, D 52.5		Appelez-nous	-
NI	132315940		Clamp, Hose, D40		Appelez-nous	-
NI	533122128		Clamp, Hose, 21.5-22.6mm		Appelez-nous	-
NI	132315970		Clamp, Hose, D65, 5		Appelez-nous	-
NI	A01208401		Cable, Power				$ 164.43
NI	A01245501		Harness, Heat Element				$ 217.58
NI	A01245601		Harness, Elect Valve		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
