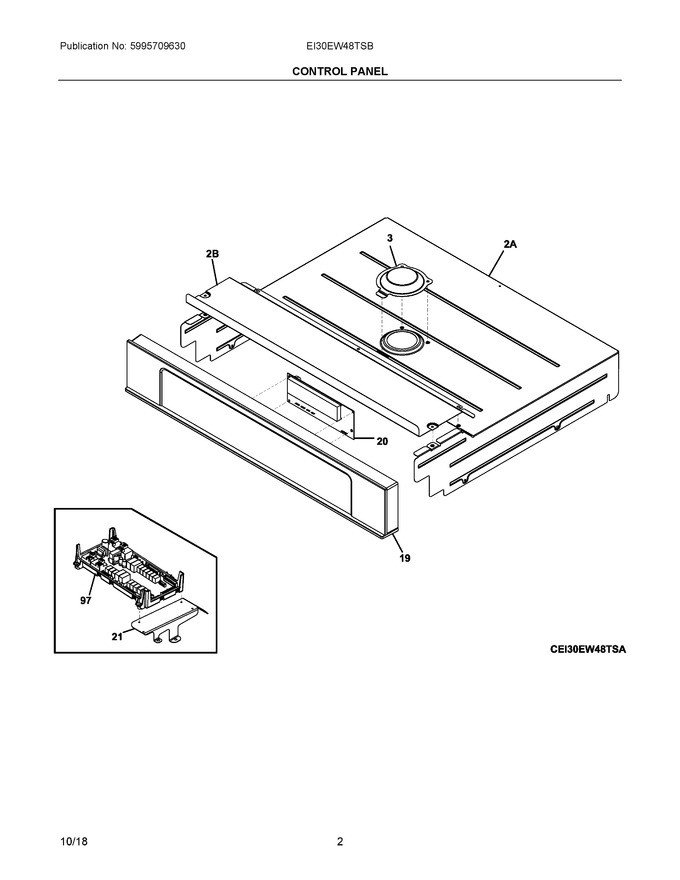

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	808963801		Shield, Sensor, Hall Effect				$ 22.75
19	5304512546		Control Panel, Assembly, Glass, Black/stainless, W/trim-frame				$ 844.99
20	316474951		Controller, Electronic, Mars   (Replaces: 316474939)				$ 363.97
21	808931301		Bracket, Ovc Support		Appelez-nous	-
97	316475804		Board Assembly, Ovc2 Pcba, W/chassis		Appelez-nous	-
2A	808651402		Shield, Wire, Top		Appelez-nous	-
2B	5304520853		Cover, Control Access   (Replaces: 808651501)				$ 57.91
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	5304516246		Harness, Wiring, Communication, Control		Appelez-nous	-
NI	5304514832		Harness, Wiring, Upper Oven, Hall Effect				$ 51.57
NI	5304500624		Harness, Wiring, Lower Oven, Hall Effect				$ 75.83
NI	5304514831		Harness, Grounding Wire				$ 11.38
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NIA	5303323129		Screw, 8 X 0.750		Appelez-nous	-
NIA	131892100		Screw, Control Mtg, 6-32 X .25, (5)   (Replaces: 316524400)		Appelez-nous	-
