SELECT A DIAGRAM

01 - Cover Sheet


02 - Door


03 - Cabinet

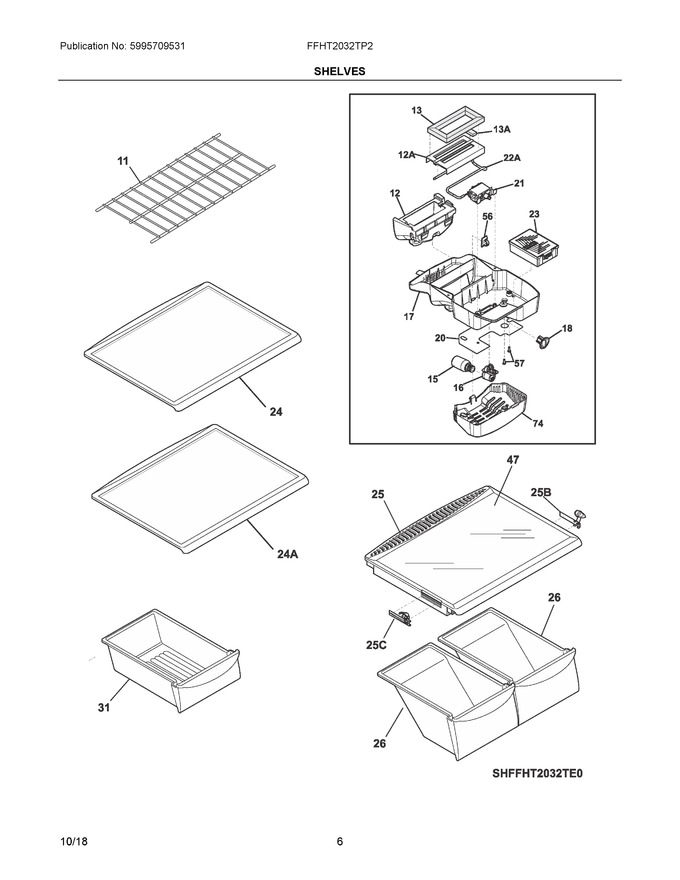

04 - Shelves


05 - System


06 - Wiring Schematic


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	240358009		Shelf, Freezer, Full-width, Wire				$ 82.45
12	5304511163		Diffuser-air				$ 42.81
13	242240603		Gasket Seal				$ 78.94
15	5304517886		Light Bulb, Led   (Replaces: 5304498578)			Immediately	$ 73.06
16	240590403		Socket-light				$ 26.54
17	5304514746		S/a Pur-control Box & Comp 21'		Appelez-nous	-
18	240360801		Knob, Temp Control				$ 43.95
20	5304511166		Heat Shield		Appelez-nous	-
21	241537107		Control Cold Foshan				$ 143.63
23	242011007		Timer				$ 186.52
24	240358928		Shelf-"spill-safe", Sliding   (Replaces: 240358927)			Immediately	$ 174.36
25	240364790		Cover-crisper Pan				$ 135.66
26	240343803		Pan, Crisper, (2)			Immediately	$ 171.91
31	240530811		Pan-meat, W/o Graphics, Clear   (Replaces: 240530803)			Immediately	$ 135.77
47	240350609		Insert-pan Cover, Glass			Immediately	$ 162.30
56	218515401		Clip-grille				$ 17.72
57	5304455649		Screw, Pan Hd, 6-20 X 0.438				$ 17.01
74	5304511168		Light Shield		Appelez-nous	-
12A	5304511164		Plate Diffuser		Appelez-nous	-
13A	240346703		Foam Tape   (Replaces: 240346712)				$ 2.28
22A	240468203		Sleeve-plastic				$ 78.87
24A	240358928		Shelf-"spill-safe", Sliding, W/pan Hanger			Immediately	$ 174.36
25B	241613501		Control-humidity, Rh			Immediately	$ 12.05
25C	241613502		Control-humidity, Lh				$ 47.78
NI	5304512206		Label-energy/energuide		Appelez-nous	-
NIA	241705801		Spacer-shelf				$ 7.09

    View Diagram in Separate Window       Print Part List
