SELECT A DIAGRAM

01 - Cover Sheet


02 - Door


03 - Cabinet


04 - Shelves


05 - System


06 - Wiring Schematic


07 - Wiring Diagram

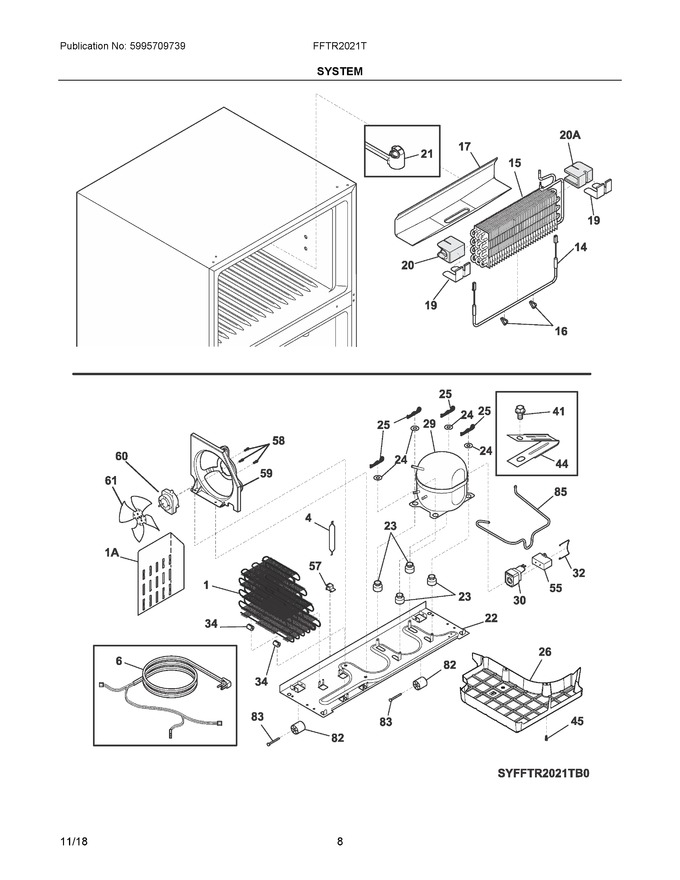

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	241785405		Condenser, Dynamic				$ 150.26
4	5303305677		Dryer-filter   (Replaces: 242047603)			Immediately	$ 31.67
6	5304521786		Harness-wiring, Machine Compt   (Replaces: 242019701)				$ 126.65
14	242044021		Heater-defrost				$ 109.15
15	5303918274		Evaporator Kit			Immediately	$ 423.67
16	5308000110		Strap-evap/heater, Aluminum, (2)			Immediately	$ 59.82
17	241801301		Trough-drain				$ 64.46
19	242320401		Shield, Heat, Evap Block				$ 67.49
20	5304527429		Block, Evaporator, Rh   (Replaces: 242238401)				$ 11.22
21	5303918634		Thermostat Kit, Defrost, W/connector			Immediately	$ 40.31
22	241665504		Base-compressor				$ 80.09
23	218513300		Grommet-compr Mtg, Compressor, (4)   (Replaces: 241659701)				$ 42.53
24	241812301		Washer-compr Mtg				$ 12.89
25	242037701		Clip-compressor Mtg				$ 2.84
26	807694801		Pan-defrost				$ 72.29
29	5304524545		Compressor, W/o Electricals   (Replaces: 241650209)				$ 502.97
30	297259505		Controller, Compressor				$ 63.79
32	216954300		Clip, Controller				$ 17.01
34	240405201		Grommet, Rubber, Black, Cond Tube/wire				$ 19.85
41	240555002		Screw-#8-32 X 3/8			Immediately	$ 13.46
44	215174700		Clamp-service Cord, Strain Relief, Galv Steel		Appelez-nous	-
45	5304455650		Screw, Hex Washer Head, 8-15a X 0.625, Low Profile				$ 14.18
55	297286803		Capacitor-run			Immediately	$ 28.77
57	240542601		Clip-wiring Harness		Appelez-nous	-
58	240569202		Screw, 8-18 X .500				$ 2.12
59	241946106		Shroud-cond Fan				$ 45.36
60	242018301		Motor-condenser Fan			Immediately	$ 138.56
61	241639502		Blade-condenser Fan   (Replaces: 241639501)			Immediately	$ 21.99
82	240335202		Roller, Compressor Base, Rear				$ 21.27
83	5304455655		Rivet, Flat Head, 1/4 Od X 1-3/4, Roller Pin			Immediately	$ 35.34
85	241856909		Tube-connector, Suction   (Replaces: 241856903)				$ 164.57
1A	242213901		Deflector, Air				$ 19.72
20A	5304527430		Block, Evaporator, Lh   (Replaces: 242238301)				$ 11.48
NI	5303918327		Heat Exchanger Kit, Suction Line				$ 303.91
NI	218515401		Clip-grille				$ 17.72
NIA	240346701		Tape-foam Seal, Shroud				$ 29.77
NIA	218252201		Screw, #8 Truss Hd, 10-32ca X 0.500			Immediately	$ 14.18
NIB	218709101		Screw, Hex Head, 10-32 X 0.500				$ 6.38
NIB	240359403		Screw-fan Shroud, (2)				$ 3.79

    View Diagram in Separate Window       Print Part List
