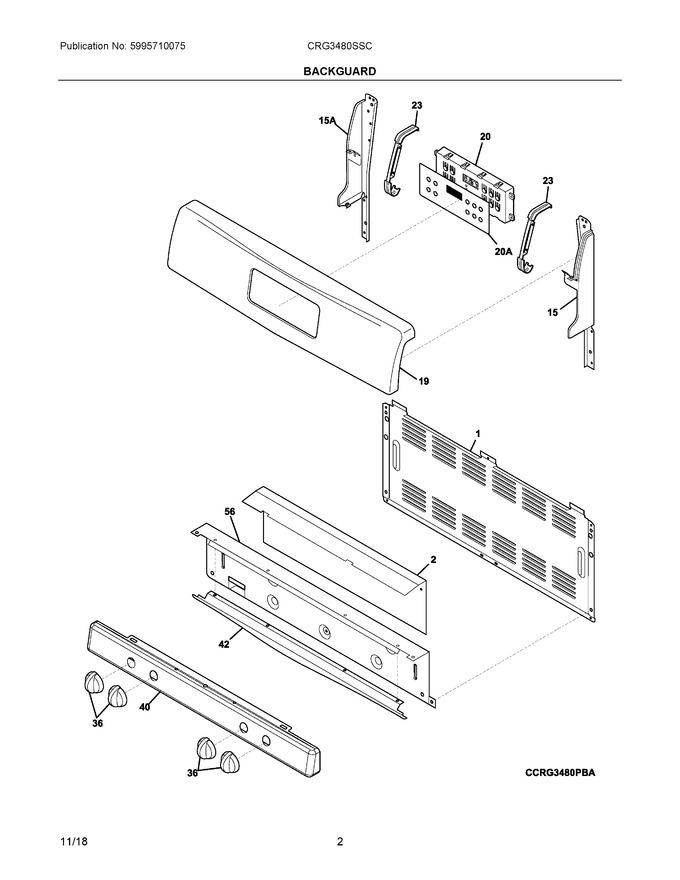

02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316281802		Shield, Backguard, Rear Wall   (Replaces: 316281801)				$ 57.64
2	316497600		Shield, Backguard, Inner				$ 66.31
15	316411405		Support, Backguard, Black, Rh				$ 83.95
19	316471520		Panel-backguard, Stainless				$ 207.19
20	5304509231		Clock, Es330isb, Black				$ 165.83
36	316220009		Knob, Top Valve, Black, 4				$ 55.36
40	316290439		Panel-manifold, Black		Appelez-nous	-
42	316416204		Trim, Extrusion, Black   (Replaces: 316416200)				$ 43.99
56	316230708		Shield, Backguard, Inner				$ 61.66
15A	316411404		Support, Backguard, Black, Lh				$ 83.95
20A	316419345		Overlay, Clock, Black, Es330		Appelez-nous	-
42A	316416204		Trim, Extrusion, Black				$ 43.99
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316519700		Screw, Cup Pt, 8-18 X 0.375, Chrome   (Replaces: 316021108)				$ 10.02
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316089500		Screw, 10-16 X .486				$ 13.46
