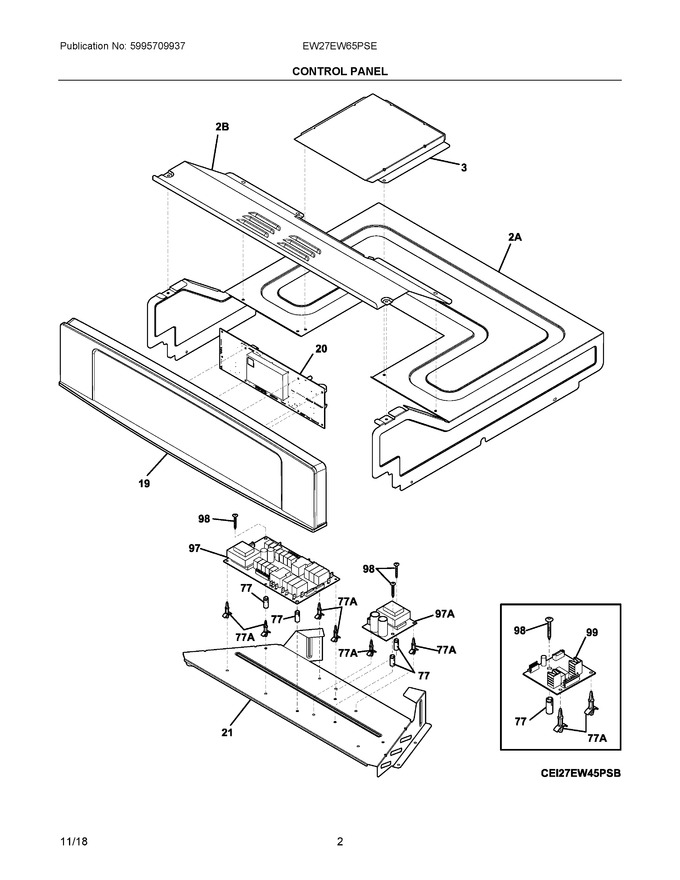

01 - Cover Sheet


02 - Control Panel


03 - Upper Oven


04 - Lower Oven


05 - Doors


06 - Wiring Diagram


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318577801		Box, Fan Service		Appelez-nous	-
19	139034537		Control Panel, Assembly, Black/stainless		Appelez-nous	-
20	316576682		Controller, Electronic, Es630w12		Appelez-nous	-
21	139028000		Bracket, Mounting				$ 63.00
77	316247900		Spacer, Power Board				$ 44.65
97	316443936		Board, Relay, Dual Oven				$ 480.56
98	5303289910		Screw, Truss Sqdr, 8a X 1", 62*				$ 5.67
99	316519205		Board, Relay, Convection, Triac				$ 256.95
2A	139003601		Cover, Oven Top		Appelez-nous	-
2B	139003701		Cover, Control Access				$ 33.31
77A	316114100		Spacer				$ 60.96
97A	316535201		Board, Power Supply, 8v				$ 349.42
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	5304517328		Harness, Wiring, Communication		Appelez-nous	-
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NIA	131892100		Screw, Control Mtg, 6-32 X .25, (5)   (Replaces: 316524400)		Appelez-nous	-
NIA	318165800		Spacer, Glass, Foam				$ 17.72
