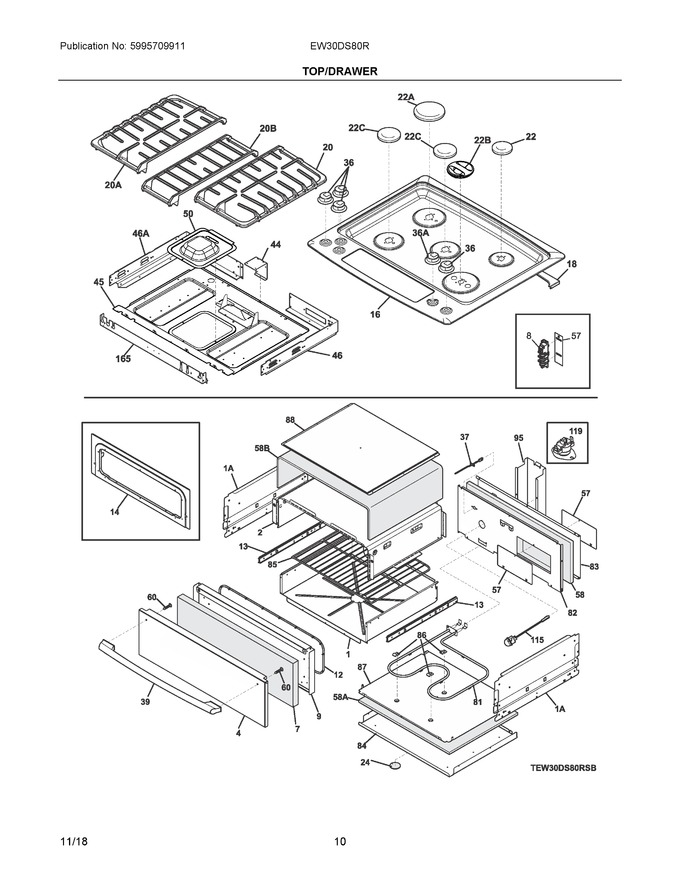

05 - Top/drawer


06 - Door


07 - Wiring Diagram


08 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318384703		Body, Drawer				$ 340.51
2	318384601		Wrapper, Outer				$ 172.94
4	5304503253		Panel, Drawer, Stainless, Outer				$ 261.86
7	5304503261		Insulation, Drawer Front				$ 38.12
8	808608804		Spark Module			Immediately	$ 76.06
9	5304503255		Liner, Drawer				$ 267.20
12	318053326		Seal, Warmer Drawer				$ 95.68
13	318385600		Glide, Drawer, (2)				$ 111.48
14	318385401		Cover, Front, Drawer				$ 154.89
15	318295611		Panel, Service				$ 15.12
16	318536562		Maintop Assembly, Stainless, W/support, W/graphics				$ 547.10
18	318906900		Support, Deflector Box				$ 37.47
20	318909206		Grate, Burner, Black, Rh				$ 310.17
22	5304508441		Cap, 5k Burner, Matte, Black   (Replaces: 316261704)			Immediately	$ 35.04
24	318346050		Insulation, Motor, Door Lock		Appelez-nous	-
36	5304491269		Knob, Top Valve, Stainless, Single				$ 75.14
37	316217005		Probe, Oven Temp				$ 78.67
39	316380802		Handle, Door, Stainless				$ 250.86
44	318905500		Support, Maintop		Appelez-nous	-
45	318578703		Panel, Burner Box, Bottom				$ 36.70
46	318568200		Box, Burner, Rh				$ 23.99
50	318578803		Panel, Service, Fan				$ 43.73
57	318386301		Panel, Service		Appelez-nous	-
58	318362120		Insulation, Rear		Appelez-nous	-
60	5303288572		Screw-handle Mtg		Appelez-nous	-
81	318255302		Element, Warmer Drawer   (Replaces: 318255306)				$ 138.02
82	5304501677		Panel, Warmer Drawer, Rear		Appelez-nous	-
83	5304501689		Panel, Insulation, Rear		Appelez-nous	-
84	318593800		Panel, Insulationl, Lower, W/stud		Appelez-nous	-
85	318908100		Rack, Mini Oven				$ 163.72
86	316095800		Clip, Hold Down, (3)				$ 9.93
87	318295313		Panel, Bottom		Appelez-nous	-
88	318532305		Panel, Deflector, Mini Oven   (Replaces: 318532303)		Appelez-nous	-
95	139008401		Shield, Wire		Appelez-nous	-
115	5304528790		Lamp Assembly, Round, Halogen, W/lens, W/bulb   (Replaces: 139009000)			Immediately	$ 20.56
119	318004902		Switch, Thermal			Immediately	$ 71.44
165	318568301		Front Panel, Burner Box		Appelez-nous	-
1A	318300002		Panel, Warmer Drawer, Side, (2)				$ 55.42
20A	318909207		Grate, Burner, Black, Lh				$ 252.74
20B	318909404		Grate, Burner, Black, Center				$ 177.14
22A	5304508468		Cap, 17k Burner, Black   (Replaces: 316262104)				$ 49.45
22B	5304499569		Cap, G5 Burner, Bridge				$ 111.99
22C	5304508442		Cap, 9.5k Burner, Matte, Black   (Replaces: 316261804)			Immediately	$ 36.55
36A	5304491270		Knob, Top Valve, Stainless, Dual				$ 75.83
46A	318568201		Box, Burner, Lh				$ 28.93
58A	318362173		Insulation, Bottom		Appelez-nous	-
58B	318362129		Insulation, Upper		Appelez-nous	-
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	807875201		Harness, Wiring, Mini Oven		Appelez-nous	-
NI	5304517816		Harness, Grounding Wire		Appelez-nous	-
NI	318163602		Cleaner, Stainless Steel				$ 26.51
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	5303288565		Screw, Truss Sqdr, 8-32 X 3/16, Switch Mtg				$ 3.12
NIA	5304505563		Wire, Ground, Spark Module, W/connector			Immediately	$ 16.23
NIA	318534403		Gasket, Maintop			Immediately	$ 59.16
NIA	318946500		Bulb, Halogen, G9, 25w, 120v			Immediately	$ 60.44
