01 - Cover Sheet
02 - Backguard
03 - Body
04 - Top/drawer
05 - Door
New Model Search:

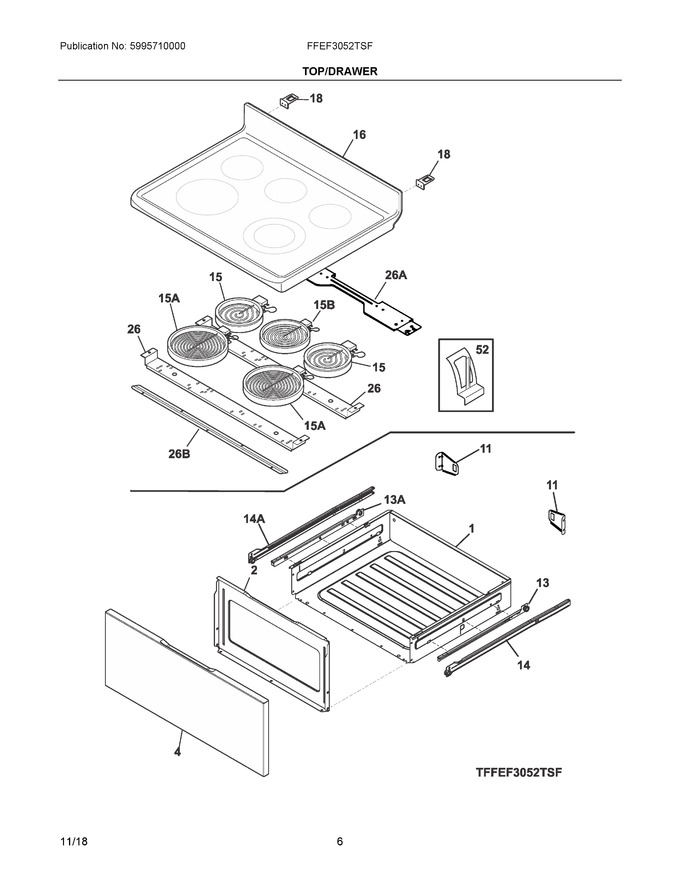

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316408706 | Drawer, Utility |
|
Immediately | $ 110.61 | ||||
| 2 | 5304511288 | Liner, Drawer |
|
$ 57.64 | |||||
| 4 | 5304509172 | Panel, Drawer, Stainless, Front |
|
$ 142.43 | |||||
| 11 | 5304517906 | Bracket, Rear Support, (2) |
|
$ 11.38 | |||||
| 13 | 5304518334 | Glide, Drawer, Gray, Inner Rh |
|
$ 12.76 | |||||
| 14 | 5304517904 | Glide, Drawer, Black, Rh Outer |
|
Immediately | $ 25.79 | ||||
| 15 | 318178110 | Element, Surface, 6", 1200, (2), Radiant |
|
Immediately | $ 122.86 | ||||
| 16 | 5304513835 | Smoothtop, Assembly, Glass/steel, Black |
|
Immediately | $ 683.96 | ||||
| 18 | 316580800 | Bracket-hinge, Main Top |
|
Immediately | $ 9.86 | ||||
| 26 | 5304512926 | Channel, Element Support |
|
$ 46.22 | |||||
| 52 | 316461700 | Clip, Element Mtg |
|
$ 12.05 | |||||
| 13A | 5304518333 | Glide, Drawer, Gray, Inner Lh |
|
$ 13.65 | |||||
| 14A | 5304517902 | Glide, Drawer, Black, Lh Outer |
|
Immediately | $ 47.98 | ||||
| 15A | 5304533520 | Element, Dual, 9"/6", Surface, 3000w, Quick Boil (Replaces: 316282000) |
|
Immediately | $ 90.14 | ||||
| 15B | 5304521951 | Element, Surface, Warmer (Replaces: 5304509306) |
|
Immediately | $ 64.46 | ||||
| 26A | 316498200 | Bracket-support, Chassis, Aluminum |
|
$ 52.33 | |||||
| 26B | 316607600 | Bracket, Chassis Support, Front |
|
$ 52.33 | |||||
| NI | 5304516197 | Harness, Wiring, Surface |
|
$ 113.15 | |||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NI | 316089500 | Screw, 10-16 X .486 |
|
$ 13.46 | |||||
| NI | 316021109 | Screw, 8-18 X 0.5, Chrome |
|
Immediately | $ 27.50 | ||||
| NIA | 5308014215 | Screw, 6-20 X 0.312 |
|
$ 2.28 |
