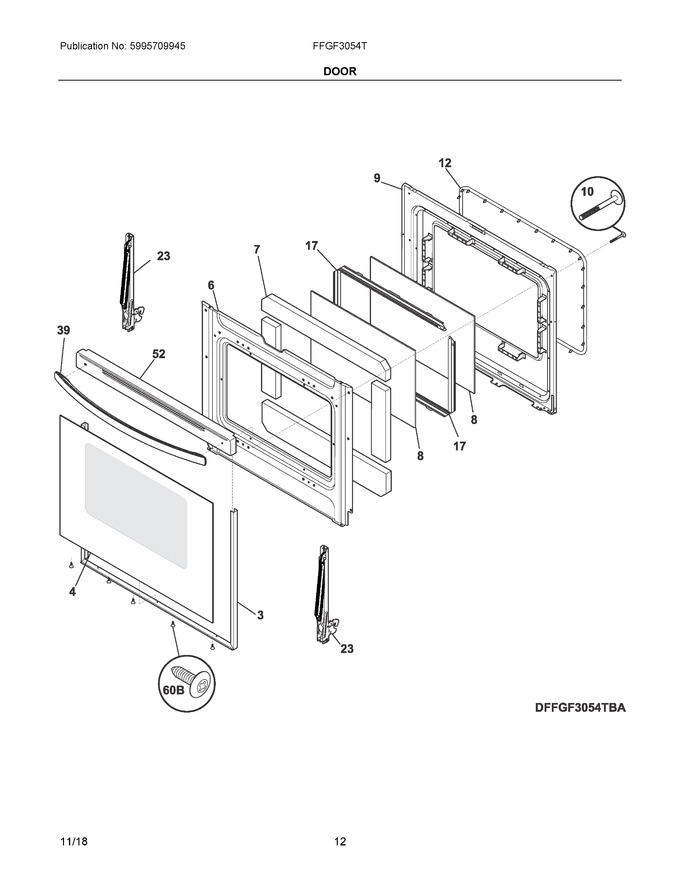

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303935378		Trim Kit-door, 3 Sided, Black, W/tape			Immediately	$ 63.08
4	316558906		Glass, Oven Door, Black, Outer				$ 125.13
6	316402314		Shield, Wool		Appelez-nous	-
7	316403900		Insulation, Oven Door			Immediately	$ 72.30
8	5304503232		Glass, Oven Door, Heat Barrier, Inner, Hrc2   (Replaces: 316117502)				$ 116.95
9	316423807		Liner-oven Door				$ 171.40
10	316433300		Screw, 10-14 X 2.125", Handle Mtg.			Immediately	$ 27.50
12	5304498835		Seal, Oven Door   (Replaces: 316403101)			Immediately	$ 88.74
17	5304504811		Spacer, Glass			Immediately	$ 25.02
23	316575902		Hinge, Oven Door, Red				$ 102.38
39	5304522046		Handle, Door, Black   (Replaces: 5304507384)			Immediately	$ 127.96
52	316575501		Cap, Door Trim, Black				$ 110.73
60B	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316483102		Label, Anti-tip				$ 3.56
NI	316519700		Screw, Cup Pt, 8-18 X 0.375, Chrome   (Replaces: 316021108)				$ 10.02
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
