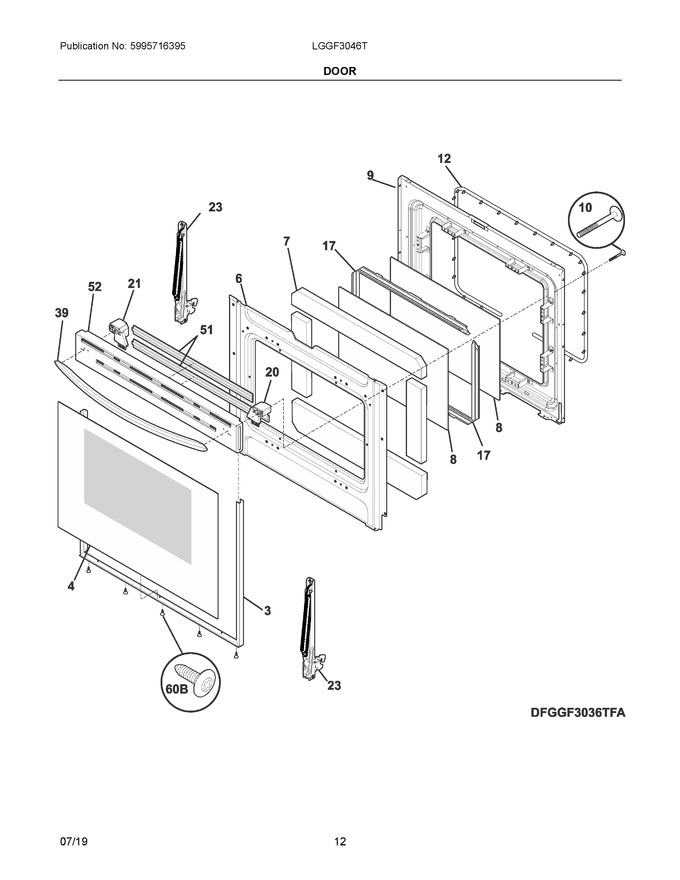

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303935378		Trim Kit-door, 3 Sided, Black, W/tape			Immediately	$ 63.08
4	316355501		Glass Assembly, Door, Black, Outer, W/foil			Immediately	$ 256.88
6	316402314		Shield, Wool		Appelez-nous	-
7	316403900		Insulation, Oven Door			Immediately	$ 72.30
8	5304503232		Glass, Oven Door, Heat Barrier, Inner, Hrc2   (Replaces: 316117502)				$ 116.95
9	316423807		Liner-oven Door				$ 171.40
10	5304507924		Screw, Handle Mtg., #10-24 X 2, (2)   (Replaces: 316439505)			Immediately	$ 16.48
12	5304498835		Seal, Oven Door			Immediately	$ 88.74
17	5304504811		Spacer, Glass			Immediately	$ 25.02
20	316353002		Spacer, Door, Rh		Appelez-nous	-
21	316353003		Spacer, Door, Lh		Appelez-nous	-
23	316575902		Hinge, Oven Door, Red				$ 102.38
39	316554010		Handle, Door/drawer, Stainless   (Replaces: 316554008)			Immediately	$ 168.44
51	316355300		Insulation, Door, Top Cap				$ 7.59
52	5304520271		Trim, Door, Stainless, Top Cap   (Replaces: 316350203)				$ 159.06
60B	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316519700		Screw, Cup Pt, 8-18 X 0.375, Chrome   (Replaces: 316021108)				$ 10.02
NI	316483102		Label, Anti-tip				$ 3.56
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
