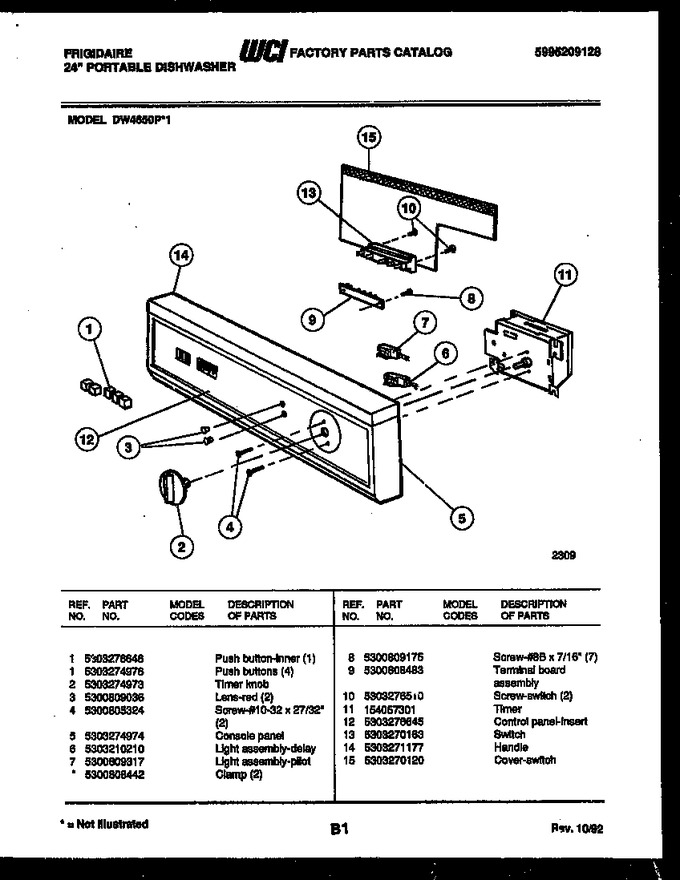

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303276646 | Push Button-inner (1) |
|
- | |||||
| 1 | 5303274976 | Push Buttons (4) |
|
- | |||||
| 2 | 5303274973 | Timer Knob |
|
- | |||||
| 3 | 5300809036 | Lens-red (2) |
|
$ 20.90 | |||||
| 4 | 5300805324 | Screw-10-32 X 27/32`` (2) |
|
- | |||||
| 5 | 5303274974 | Console Panel |
|
- | |||||
| 6 | 5303210210 | Light Assembly-delay |
|
- | |||||
| 7 | 5300809317 | Light Assembly-pilot |
|
- | |||||
| 8 | 5300809175 | Screw 8b X 7/16`` |
|
- | |||||
| 9 | 5300808483 | Terminal Board Assembly |
|
- | |||||
| 10 | 5303276510 | Screw-switch (2) |
|
- | |||||
| 11 | 154057301 | Timer |
|
- | |||||
| 12 | 5303276645 | Control Panel-insert |
|
- | |||||
| 13 | 5303270163 | Switch |
|
- | |||||
| 14 | 5303271177 | Handle |
|
- | |||||
| 15 | 5303270120 | Cover-switch |
|
- | |||||
| 7A | 240396801 | Clamp (2) (non-illustrated) (Replaces: 5300808442) |
|
$ 19.13 |
