01 - Cover Sheet
02 - Control Panel
03 - Door
04 - Electrical Parts
05 - Wash System
06 - Tub & Frame

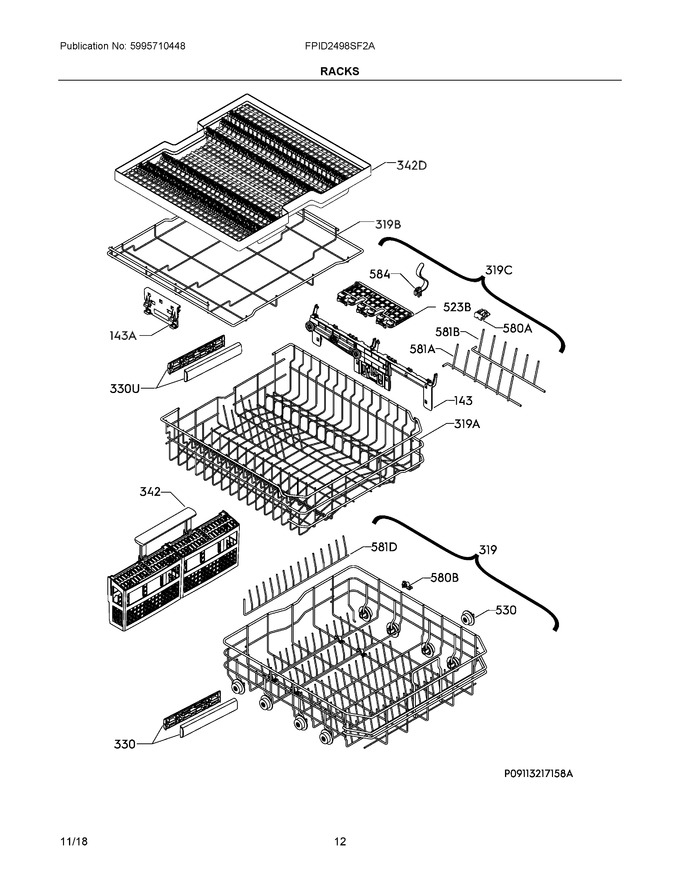

07 - Racks
08 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 143 | 405541617 | Adjustment Kit, Upper Rack, Lh & Rh |
|
$ 135.77 | |||||
| 319 | 140066296207 | Rack Assembly, Lower, Silver (Replaces: A06629603) |
|
$ 161.87 | |||||
| 330 | 405542574 | Handle Kit, Rack, Lower |
|
- | |||||
| 342 | A00173209 | Cutlery Basket, Assembly, Grey (Replaces: A00173206) |
|
$ 106.65 | |||||
| 530 | 405507213 | Rack Roller, Kit, Lower |
|
$ 45.46 | |||||
| 584 | A00924504 | Clip, Cup |
|
$ 33.42 | |||||
| 143A | A00008104 | Holder, Basket, Top (Replaces: 405541622) |
|
Immediately | $ 29.69 | ||||
| 319A | A00239833 | Rack Assembly, Upper, Silver |
|
$ 318.50 | |||||
| 319B | A00004305 | Rack, Top, Silver |
|
$ 363.30 | |||||
| 319C | 117492580 | Rack Assembly, Complete, Silver, Upper, W/adjustments |
|
$ 422.18 | |||||
| 330U | 405542573 | Handle Kit, Rack, Upper |
|
- | |||||
| 342D | A02899201 | Basket, Cuttlery, Grey, Shelf |
|
$ 160.77 | |||||
| 523B | 808124102 | Shelf, Cup, Grey |
|
$ 171.00 | |||||
| 580A | A00141702 | Fixing Clamp, Partition, Upper |
|
$ 74.99 | |||||
| 580B | 807282902 | Clip, Partition, Lower Rack |
|
$ 65.92 | |||||
| 581A | A00237001 | Partition, Upper Rack, Lh |
|
$ 160.61 | |||||
| 581B | 807077101 | Partition, Upper Rack, Rh |
|
$ 156.64 | |||||
| 581D | A06542001 | Partition, Lower Rack |
|
$ 102.95 |
