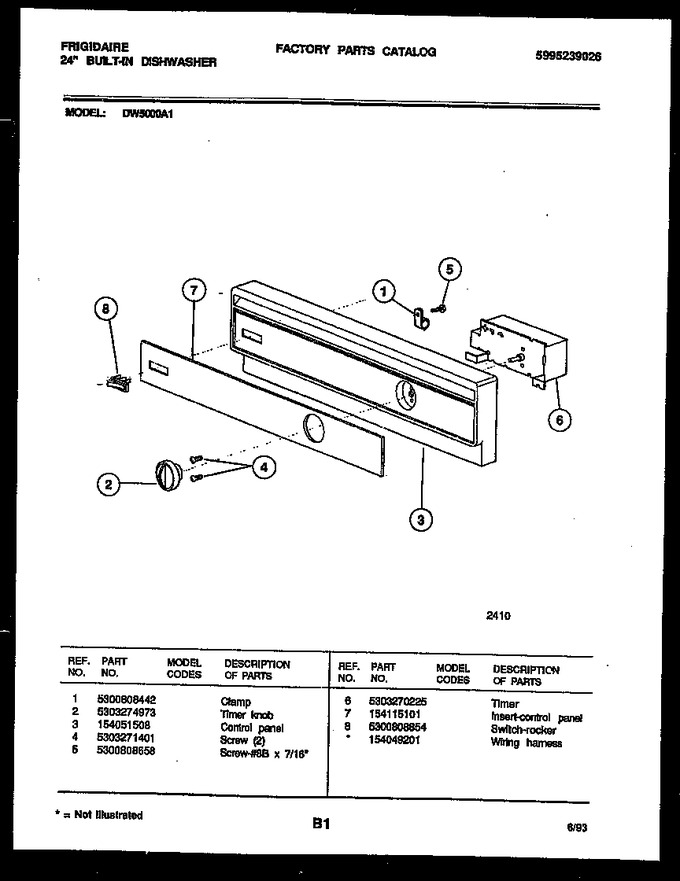

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 240396801 | Clamp (Replaces: 5300808442) |
|
$ 19.13 | |||||
| 2 | 5303274973 | Timer Knob |
|
- | |||||
| 3 | 154051508 | Control Panel |
|
- | |||||
| 4 | 5303271401 | Screw (2) |
|
- | |||||
| 5 | 154419403 | Screw-8b X 7/16`` (Replaces: 5300808658) |
|
$ 13.10 | |||||
| 6 | 5303270225 | Timer |
|
- | |||||
| 7 | 154115101 | Insert-control Panel |
|
- | |||||
| 8 | 5300808854 | Switch - Rocker |
|
- | |||||
| *77579 | 154049201 | Wiring Harness |
|
- |
