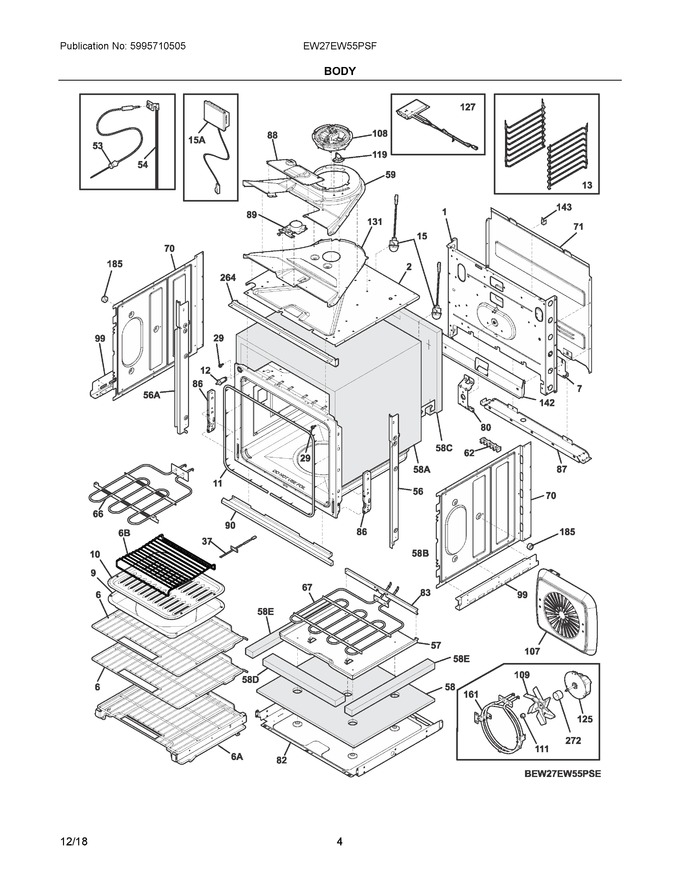

03 - Body


04 - Door


05 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304506958		Panel, Main Back		Appelez-nous	-
2	139027806		Shield, Insulation, Top		Appelez-nous	-
6	808713918		Rack Assembly, Ladder, Cobalt, W/handle		Appelez-nous	-
7	5304506960		Panel, Service, Main Back		Appelez-nous	-
9	316081901		Pan, Broiler, Cobalt Blue				$ 74.32
10	316082001		Insert, Broiler Pan, Cobalt Blue				$ 53.09
11	807545503		Seal, Oven Door, Gray				$ 85.76
12	808136601		Switch, Light, Door   (Replaces: 318394802)			Immediately	$ 44.04
13	808713901		Ladder Assembly, Kit, Nickel, W/2 Ladders				$ 150.97
15	5304528790		Lamp Assembly, Round, Halogen, W/lens, W/bulb   (Replaces: 139009000)			Immediately	$ 20.56
29	316517601		Bumper, Main Front, Cobalt Blue		Appelez-nous	-
37	5304504897		Sensor, Oven Temp Probe			Immediately	$ 48.13
53	5304503737		Probe, Meat, Black   (Replaces: 5304516490)				$ 99.33
54	139017203		Receptacle Assy, Meat Probe   (Replaces: 5304514886)			Immediately	$ 153.09
56	318903765		Trim, Side, Silver Mist, Rh		Appelez-nous	-
57	5304538692		Box, Bake Element   (Replaces: 5304506949)		Appelez-nous	-
58	5304506952		Insulation, Bake Element, Lower				$ 77.26
59	139027600		Duct, Cooling Fan, Upper				$ 85.76
62	5304409888		Terminal Block   (Replaces: 316056000)			Immediately	$ 26.69
66	5304523477		Element, Broil, 6 Pass, 3400w   (Replaces: 139028200)				$ 235.85
67	140010667149		Element, Hidden Bake, 2500w   (Replaces: 5304506946)				$ 55.23
70	139000601		Shield, Insulation, Sides, (2)				$ 72.05
71	139022000		Shield, Rear Wire, Main Back		Appelez-nous	-
80	139021101		Bracket, Support, Chassis/fan				$ 14.89
82	5304506947		Shield, Insulation, Lower		Appelez-nous	-
83	5304506951		Shield, Bake Element, Rear		Appelez-nous	-
86	139026900		Receptacle, Hinge, Dual Spring				$ 32.61
87	139021900		Bracket, Cable Mtg.		Appelez-nous	-
88	5304506964		Cover, Latch Motor				$ 24.10
89	5304528835		Motor, Latch Assy., 2 Terminals   (Replaces: 139021303)			Immediately	$ 74.12
90	318903535		Trim, Oven Bottom, Stainless				$ 357.21
99	318256201		Bracket, Side, Bottom, (2)				$ 56.70
107	139013902		Cover, Convection Fan, Cobalt				$ 120.54
108	318575614		Motor, Cooling Fan, Dual Speed				$ 186.69
109	318398302		Blade, Fan, Convection   (Replaces: 139009100)			Immediately	$ 29.11
111	316136600		Nut, Fan Retainer			Immediately	$ 19.13
119	318578506		Thermostat, Safety, 105c			Immediately	$ 58.19
125	139008504		Motor, Convection Fan, 2400 Rpm, 2 Speed   (Replaces: 139008503)			Immediately	$ 170.57
127	807123502		Catalyst, Oven Vent		Appelez-nous	-
131	139027700		Duct, Cooling Fan, Lower				$ 73.00
142	5304506953		Sheild, Air Deflector, Back		Appelez-nous	-
143	318172904		Support, Wire		Appelez-nous	-
161	8581390065036		Element, Convection, 2500w   (Replaces: 139006500)				$ 47.63
185	318531800		Spacer, Oven Shield, (2)				$ 12.76
264	139003501		Trim, Vent, Black, Front				$ 36.20
272	139021700		Tube, Convection Fan				$ 17.72
15AA	139001800		Lamp Assembly, Halogen, 26" Harness, W/g9 40w Bulb				$ 124.22
56A	318903766		Trim, Side, Silver Mist, Lh		Appelez-nous	-
58A	139001701		Insulation, Oven Wrapper, 27", Top & Sides		Appelez-nous	-
58C	5304506954		Insulation, Oven, Back		Appelez-nous	-
58D	5304506965		Insulation, Bake Element, Front		Appelez-nous	-
58E	5304506966		Insulation, Bake Element, Side		Appelez-nous	-
6A	808713910		Glide Rack, Assembly, Cobalt, W/handle				$ 357.21
6B	318219500		Rack, Broiler Pan		Appelez-nous	-
NI	5304470882		Screw, Anti-tip, 8 - 5/8, Black, (2)				$ 13.46
NI	5303289910		Screw, Truss Sqdr, 8a X 1", 62*				$ 5.67
NI	807597603		Screw, Self Tapping, 8-18 X 11/32, (4)				$ 9.22
NI	318165800		Spacer, Glass, Foam				$ 17.72
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	5304506983		Harness Assembly, Conduit, Elbow Connector, & Wiring				$ 133.47
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	5304517285		Harness Assembly, Filter, Electrical, W/capacitors   (Replaces: 5304500988)				$ 38.68
NIA	318946500		Bulb, Halogen, G9, 25w, 120v			Immediately	$ 60.44
NIA	316205500		Nut, Hex Flange, 3/8 10-32				$ 11.34
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
NIA	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NIA	318946400		Bulb, Halogen, G9, 40w, 120v			Immediately	$ 49.32
NIA	318579001		Bracket, Wire				$ 11.08
