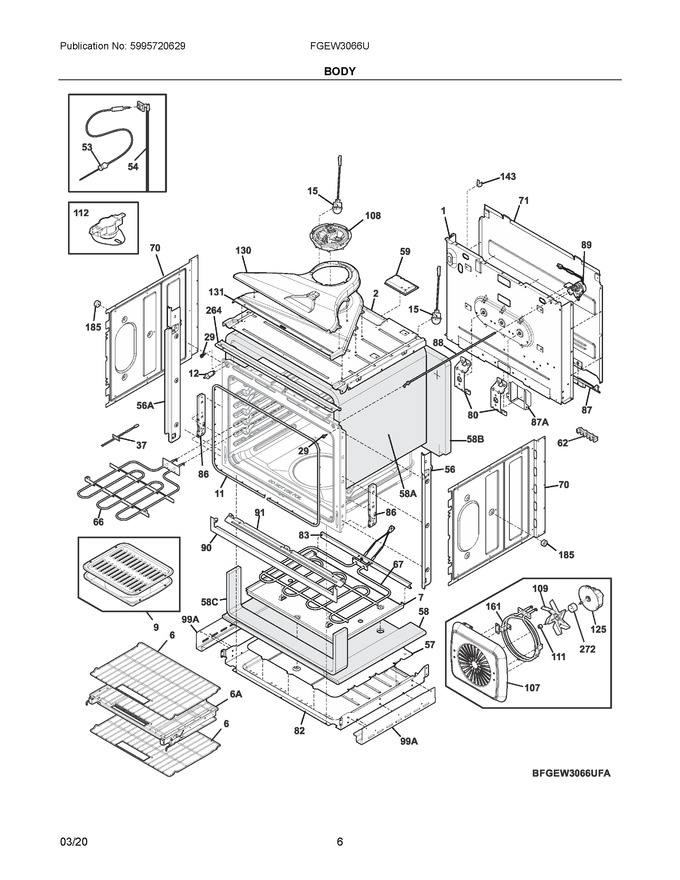

03 - Body
04 - Door
05 - Wiring Diagram
06 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 139035302 | Panel, Main Back |
|
- | |||||
| 2 | 808651301 | Shield, Insulation, Top |
|
- | |||||
| 6 | 5304514983 | Rack, Oven, W/handle |
|
$ 137.58 | |||||
| 7 | 5304520858 | Box, Bake Element (Replaces: 808816302) |
|
$ 127.40 | |||||
| 9 | 5304494997 | Broil Pan Kit, Pan & Insert, Slate Blue, Optional, Accessory |
|
$ 72.01 | |||||
| 11 | 139036701 | Seal, Oven Door |
|
$ 98.99 | |||||
| 12 | 808136601 | Switch, Light, Door (Replaces: 318394802) |
|
Immediately | $ 44.04 | ||||
| 15 | 5304528790 | Lamp Assembly, Round, Halogen, W/lens, W/bulb (Replaces: 139009000) |
|
Immediately | $ 20.56 | ||||
| 29 | 316517600 | Bumper, Front, Main |
|
$ 12.05 | |||||
| 37 | 5304504897 | Sensor, Oven Temp Probe |
|
Immediately | $ 48.13 | ||||
| 53 | 5304503737 | Probe, Meat, Black (Replaces: 5304516490) |
|
$ 99.33 | |||||
| 54 | 139017203 | Receptacle Assy, Meat Probe (Replaces: 5304514886) |
|
Immediately | $ 153.09 | ||||
| 56 | 139037410 | Trim, Oven Side, Black, Rh |
|
- | |||||
| 57 | 808109502 | Shield, Air Wash, Lower |
|
- | |||||
| 58 | 808816501 | Insulation, Bottom |
|
- | |||||
| 59 | 808931401 | Vent Box Assy., W/catalyst |
|
$ 132.53 | |||||
| 62 | 5304409888 | Terminal Block (Replaces: 316056000) |
|
Immediately | $ 26.69 | ||||
| 66 | 140123969028 | Element, Broil, 6 Pass, 4000w (Replaces: 5304514924) |
|
- | |||||
| 67 | 5304516286 | Element, Hidden Bake, 2200w |
|
Immediately | $ 109.21 | ||||
| 70 | 139000601 | Shield, Insulation, Sides, (2) |
|
$ 72.05 | |||||
| 71 | 808650301 | Shield, Rear Wall |
|
- | |||||
| 80 | 139021101 | Bracket, Support, Chassis/fan |
|
$ 14.89 | |||||
| 82 | 808108901 | Shield, Insulation, Lower |
|
- | |||||
| 83 | 808816401 | Shield, Bake Tray, Rear |
|
- | |||||
| 86 | 139026900 | Receptacle, Hinge, Dual Spring |
|
$ 32.61 | |||||
| 87 | 808652001 | Bracket, Cable Box |
|
- | |||||
| 88 | 808721601 | Rod, Door Latch |
|
$ 53.85 | |||||
| 89 | 808721802 | Motor Assy., Door Latch |
|
$ 77.70 | |||||
| 90 | 5304514922 | Trim, Vent, Stainless, Lower |
|
$ 113.00 | |||||
| 91 | 5304518870 | Divider, Lower Air, Black |
|
$ 81.90 | |||||
| 107 | 139013903 | Cover, Convection Fan |
|
$ 46.86 | |||||
| 108 | 5304528825 | Motor Assembly, Fan (Replaces: 807123001) |
|
Immediately | $ 178.30 | ||||
| 109 | 318398302 | Blade, Fan, Convection (Replaces: 139009100) |
|
Immediately | $ 29.11 | ||||
| 111 | 316136600 | Nut, Fan Retainer |
|
Immediately | $ 19.13 | ||||
| 112 | 5304538823 | Thermostat, Safety, 125c (Replaces: 318578509) |
|
Immediately | $ 14.72 | ||||
| 125 | 139008504 | Motor, Convection Fan, 2400 Rpm, 2 Speed (Replaces: 139008503) |
|
Immediately | $ 170.57 | ||||
| 130 | 808651606 | Duct, Cooling Fan, Upper (Replaces: 808651603) |
|
Immediately | $ 147.12 | ||||
| 131 | 808651702 | Duct, Cool Fan, Lower |
|
$ 115.27 | |||||
| 143 | 318172904 | Support, Wire |
|
- | |||||
| 161 | 8581390065036 | Element, Convection, 2500w (Replaces: 139006500) |
|
$ 47.63 | |||||
| 185 | 318531800 | Spacer, Oven Shield, (2) |
|
$ 12.76 | |||||
| 264 | 5304500596 | Trim, Vent, Black, Upper |
|
$ 48.91 | |||||
| 272 | 139021700 | Tube, Convection Fan |
|
$ 17.72 | |||||
| 56A | 139037411 | Trim, Oven Side, Black, Lh |
|
- | |||||
| 58A | 808905501 | Insulation, Oven Wrapper |
|
- | |||||
| 58B | 808905101 | Insulation, Oven Back |
|
- | |||||
| 58C | 807887503 | Insulation, Bake Element, Front |
|
- | |||||
| 6A | 5304518864 | Rack Assembly, Gliding, Nickel, W/handle |
|
Immediately | $ 331.40 | ||||
| 87A | 808652101 | Shield, Terminals, Bake Element |
|
- | |||||
| 99A | 5304514974 | Support, Floor |
|
- | |||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw, 8-18 X 0.5, Chrome |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw, 8-18 X 0.5, Black (Replaces: 316021110) |
|
Immediately | $ 27.50 | ||||
| NI | 807597603 | Screw, Self Tapping, 8-18 X 11/32, (4) |
|
$ 9.22 | |||||
| NI | 5304470882 | Screw, Anti-tip, 8 - 5/8, Black, (2) |
|
$ 13.46 | |||||
| NI | 5303324184 | Screw, 8-18 X 5/16, Black |
|
Immediately | $ 14.18 | ||||
| NI | 5304506984 | Harness Assembly, Conduit, Elbow Connector, & Wiring |
|
$ 150.17 | |||||
| NI | 5303289910 | Screw, Truss Sqdr, 8a X 1", 62* |
|
$ 5.67 | |||||
| NI | 5304516502 | Harness, Wiring, Main |
|
$ 185.80 | |||||
| NI | 5304514908 | Harness, Convection |
|
$ 57.64 | |||||
| NI | 5304514911 | Harness, Wiring, Ads Mdl |
|
$ 40.96 | |||||
| NIA | 318946500 | Bulb, Halogen, G9, 25w, 120v |
|
Immediately | $ 60.44 | ||||
| NIA | 316418900 | Screw, Sims Lp, #8-32 X 5/16", Black |
|
$ 14.18 | |||||
| NIA | 318167300 | Clip, Rod |
|
$ 2.84 | |||||
| NIA | 318579001 | Bracket, Wire |
|
$ 11.08 | |||||
| NIA | 316001017 | Screw, Ground Wire (Replaces: 316001003) |
|
$ 3.03 | |||||
| NIB | 5303311164 | Spring |
|
$ 18.95 | |||||
| NIB | 316205500 | Nut, Hex Flange, 3/8 10-32 |
|
$ 11.34 |
